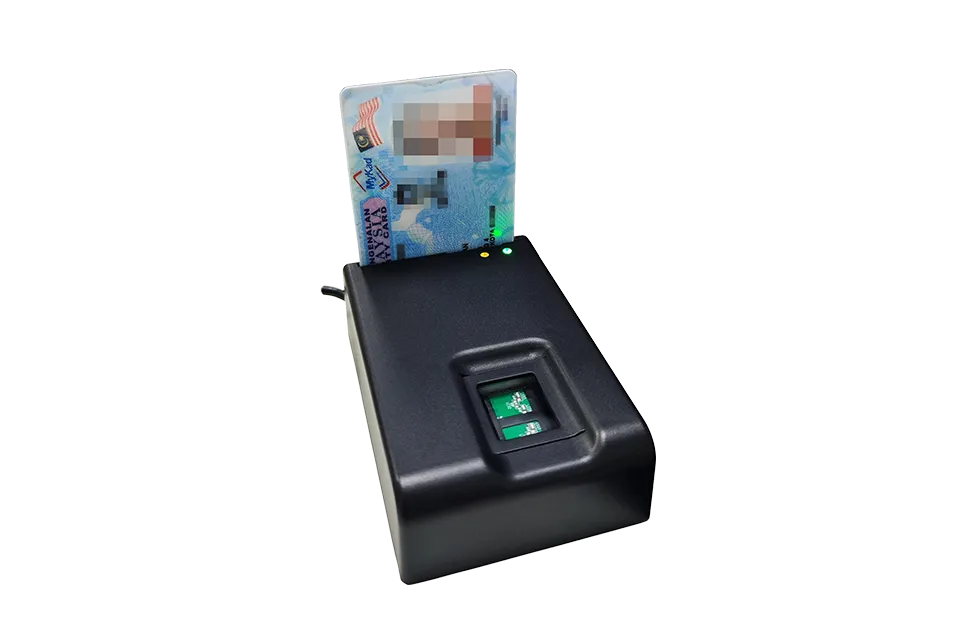

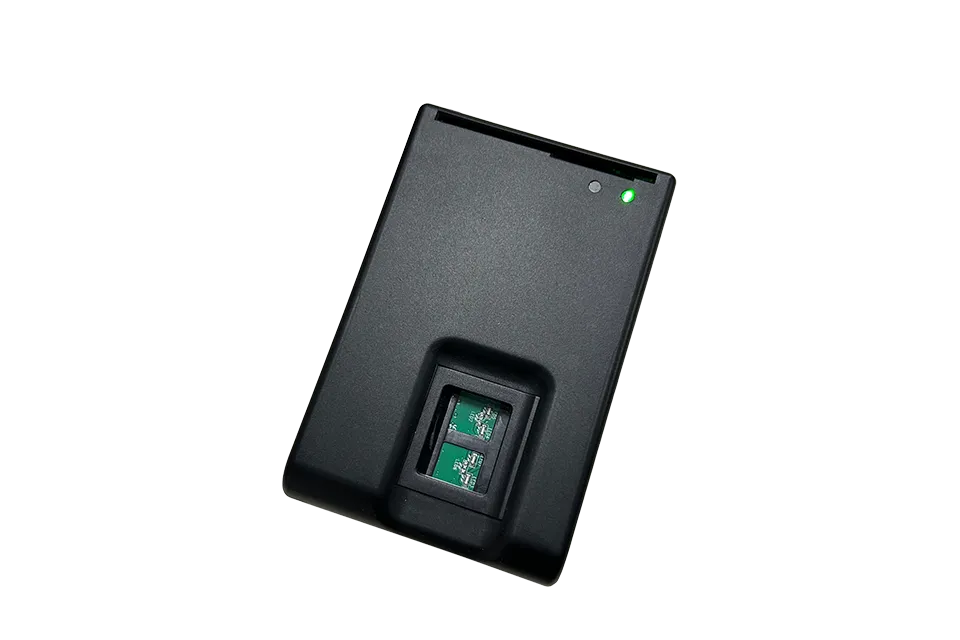

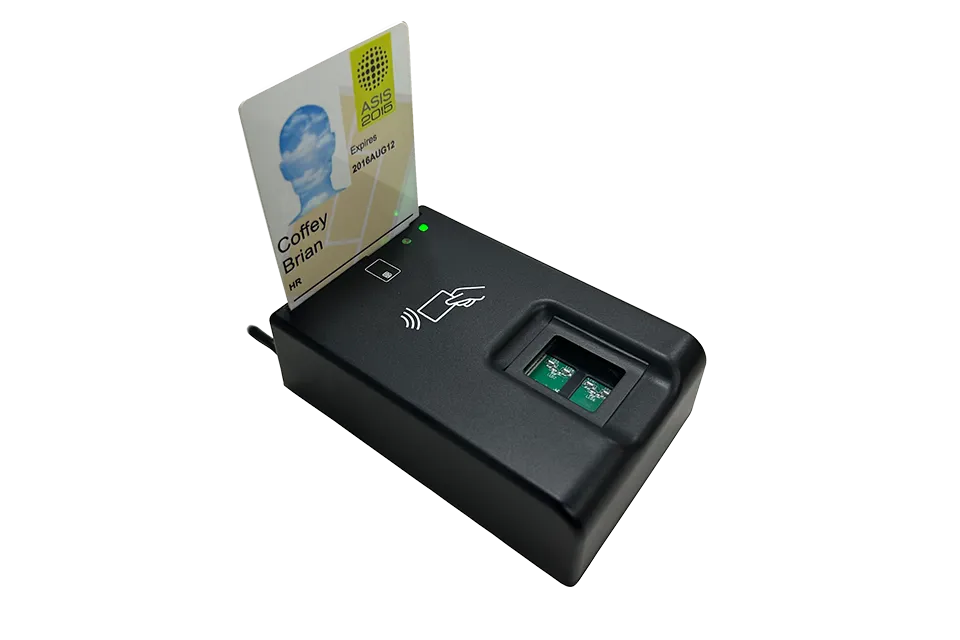

MZR02 Series is a biometric fingerprint and smart card reader designed for organizations seeking multi-factor authentication with contact, contactless, and fingerprint technologies in a single device. It supports all major card ICs, standards, and technologies and works seamlessly in mission critical environments where higher security is needed with a high convenience.
Government: National ID registration, Citizen enrollment
Border Control: Identity verification, Immigration checkpoints
Telecommunications: SIM registration, Subscriber verification
Uses native supported CCID drivers within Windows, Linux, and Android operating systems
Ultra-thin optical fingerprint sensor with 500 DPI resolution and FBI PIV certification
Combines contact (ISO/IEC 7816) and contactless (13.56 MHz) with NFC support in a single device
300 x 400 pixel area, 8-bit grayscale with 256 levels, and 30 frames/second image capture
Up to 600 kbps for contact and 848 kbps for contactless interfaces for maximum end-user convenience
Compatible with all major card ICs including MIFARE, FeliCa, and NFC Forum Tag types
PC/SC and CCID compliant with Windows, Linux, and Android for plug-and-play integration
Fully compliant with ISO/IEC 7816, ISO/IEC 14443, USB 2.0 Full Speed, CCID, Microsoft® WHQL, FBI PIV-071006, and Mobile ID FAP 20 standards
Logo, case color, and shell surface treatment process customizable; fingerprint sensor can be customized to Suprema BM-SLIM2
Ideal for secure identity authentication, PKI key authentication, fingerprint data collection, digital signature authentication, and identity certificate issuance
Parameter | Details |
Host Interface | USB 2.0 CCID (USB 1.1/3.0 compliant) |
Communication Speed | 12 Mbps (USB 2.0 full speed) |
Fingerprint Sensor | |
Collection window area | 16.4 mm * 21.1mm |
Sensor resolution | 500 DPI±1% |
Grayscale image | 8-bit, 256 levels of gray |
Contact Smart Card Interface | |
Supported Standards | ISO/IEC 7816 Part 1 to 4 ,classes A/B/C (5V, 3.3V, 1.8V) |
Contact Smart Card Protocols | T=0, T=1; |
Smart Card Interface Speed | Up to 600 kbps (depending on card) , TA1=97 |
Contactless Smart Card Interface | |
Supported Contactless Standards | ISO/IEC 14443 A&B, ISO/IEC18092 |
Supported Contactless Card ICs | MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag types 1/2/3/4 |
Data Transfer Rate | 106/212/424/848 kbits/s, depending on card IC |
Driver and Software | |
PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), • Android 4.0 and higher |
Software | PC/SC API; CT-API (through wrapper on top of PC/SC); M-Card API (through wrapper on top of PC/SC) |
Operating Conditions | |
Power Supply | USB Bus-powered |
Dimensions(L x W x H) | 102.5 x 67 x 29.5 mm |
Weight | 195 g ± 5% |
Connector | 1.5m USB cable with USB type A connector |
Certifications / Compliance | |
Systems/Standards | ISO/IEC 7816, ISO/IEC 14443, USB 2.0 Full Speed, CCID, Microsoft® WHQL,FBI PIV-071006, Mobile ID FAP 20 |
Regulatory/Environmental | CE, RoHS |
