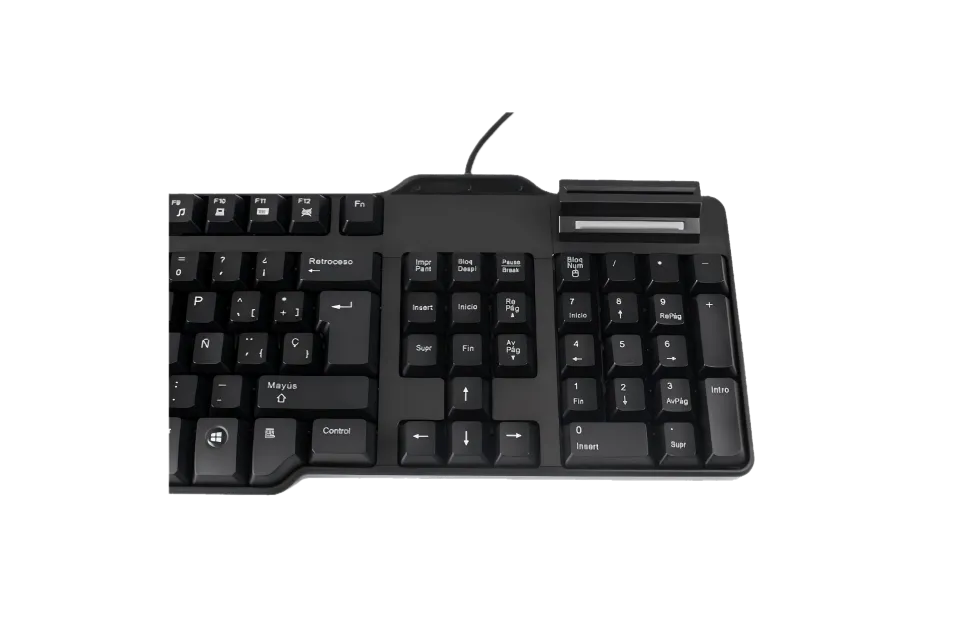

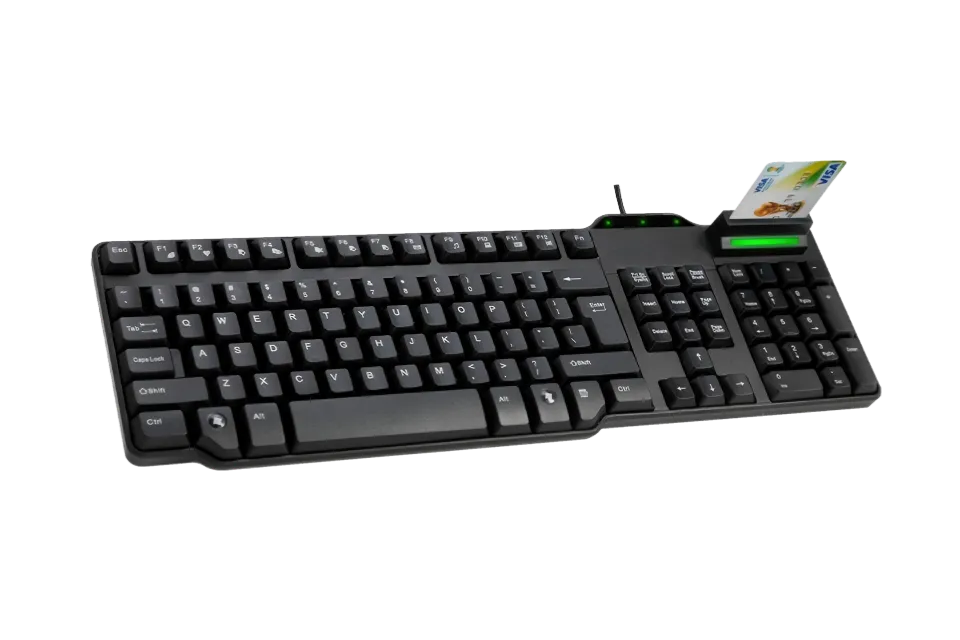

The MCR3590 keyboard integrates contact smart card reader functionality into a single, ergonomic device with a familiar keyboard layout that streamlines secure authentication and minimizes desktop clutter.
This smart card reader keyboard is ideal for banking, healthcare, e-commerce, and government agencies requiring secure identification and web application access without sacrificing desk space.
One of the key features of the MCR3590 is the silent key design with UV-coated characters, ensuring durability and comfortable keystroke experience in any environment from quiet offices to late-night work sessions.
The waterproof design with drainage holes allows for easy cleaning and protection against spills, while the adjustable tilt and 1.5-meter cable increase flexibility and comfort.
To ensure flexibility for the future, the MCR3590 supports all major ISO/IEC 7816 compliant smart cards and EMV 2011 standards, with PC/SC and CCID compatibility for plug-and-play integration.
Government: e-Government systems, Citizen services
Enterprise: Secure network logon, Workstation authentication
Digital Security: Digital signatures, Document authentication
Uses native supported CCID drivers within Windows, Linux, macOS, and Android operating systems
Combines PC keyboard with contact (ISO/IEC 7816) smart card reader functionality
Up to 600 kbps for contact interface with TA1=97 support for maximum end-user convenience
Compatible with all major ISO/IEC 7816 compliant smart cards and synchronous cards I2C and 3-wire
Mute button design for quiet operation in offices, libraries, or late-night work environments
UV technology for key characters ensures long wear life and durability
Drainage holes for easy cleaning and protection against spills
PC/SC and CCID compliant with Windows, Linux, macOS, and Android for plug-and-play integration
Fully compliant with ISO/IEC 7816, USB 2.0, PC/SC, CCID, EMV 2011, and Microsoft® WHQL standards
English keyboard layout with customization options available
Ideal for banking, healthcare, e-commerce, government agencies, secure web applications, and network logon
| Parameter | details |
| Power Supply | USB Bus-powered |
| Physical dimensions | Dimensions(L x W x H) 443 x 149 x 46 mm Gross Weight 611g ± 5% |
| Keyboard | layout English (customizable) |
| Status LEDs | Num lock, Caps lock, Scroll lock |
| Supported Standards(LWH) | ISO/IEC 7816 Part 1 to 4, EMV 2011 Ver 4.3 Level 1 (compliant) |
| PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, Windows XP, • MacOS 10.9.x - 12.2.x, • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), • Android 4.0 and higher |
| Certifications / Compliance | CE, RoHS |
