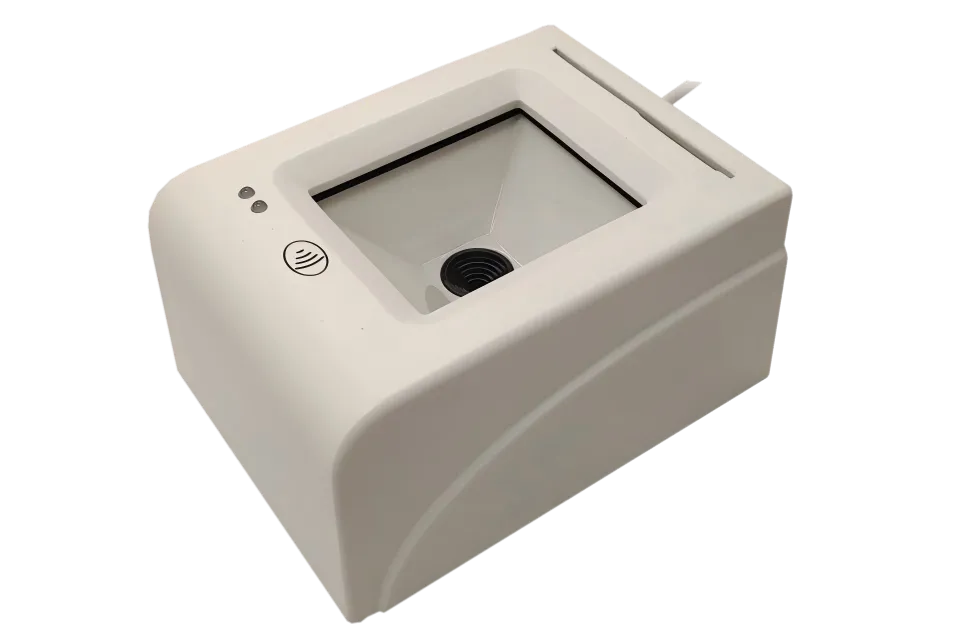

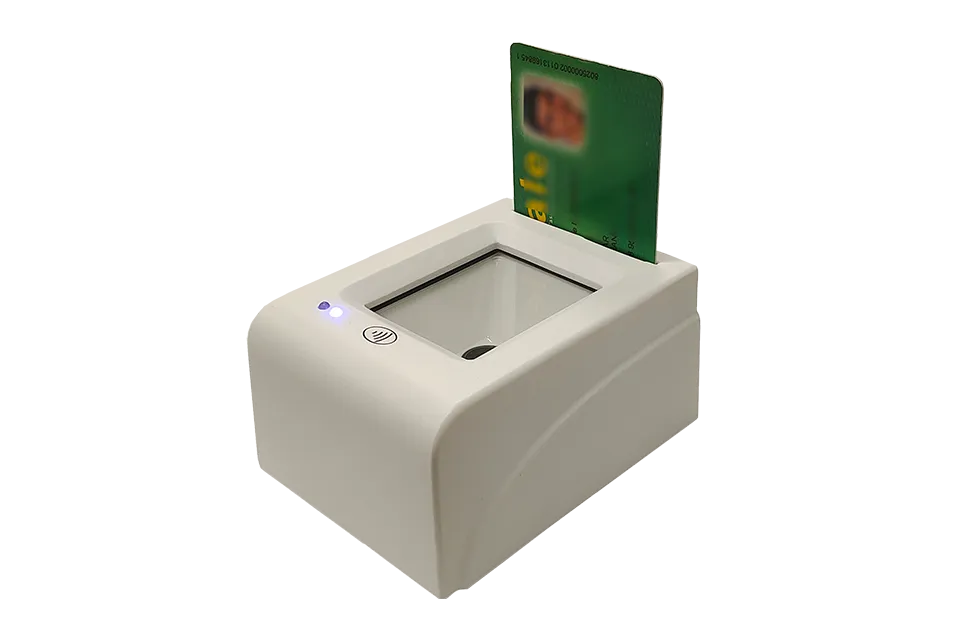

The MCR7003 integrates QR code scanning, contactless NFC, and Secure Access Module (SAM) technologies into a single, powerful device that quickly captures and processes multiple credential types.
This multifunctional reader is ideal for government, healthcare, banking, transportation, and security environments requiring versatile authentication and identity verification.
One of the key features of the MCR7003 is the professional optical scanning technology that accurately reads both printed codes and electronic screen codes from smartphones, with breakthrough performance in wide scanning range and high-speed recognition and even on damaged or reflective surfaces.
The dual SAM slots provide enhanced security for sensitive applications, while the dual interface contact and contactless smart card support ensures compatibility with virtually all credential types.
To ensure flexibility for the future, new firmware can be downloaded to add and modify features as requirements evolve.
Government: National ID verification, Citizen authentication
Public Services: Self-service kiosks, Service access points
Healthcare: Medical systems, Patient registration
Uses native supported CCID drivers within Windows, Linux, and Android operating systems
640 x 480 CMOS sensor with 5mil recognition accuracy, supports all major 1D and 2D code types
Wide scanning range, high-speed decoding, millisecond response, and reads damaged or reflective surfaces
Two ID-1 sliding contact sockets (one can be used as SAM) for enhanced security
Combines contact (ISO/IEC 7816) and contactless (13.56 MHz) with NFC support
Up to 600 kbps for contact and 848 kbps for contactless interfaces
Compatible with all major card ICs including MIFARE, FeliCa, and NFC Forum Tag types
PC/SC and CCID compliant with Windows, Linux, and Android for plug-and-play integration
Contact slots rated for 500,000 card insertions for long-term reliability
Ideal for e-Government, e-Health, access control, identity authentication, digital signature, network security, banking, finance, and public transportation
Parameter | Details |
QR Scanner | |
1D code types | Interleaved 2 of 5, ISBN, Code 93, Code 11, UCC/EAN-128 GS1 Databar, Matrix 2 of 5, Industrial 2 of 5, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Standard 2 of 5, MS-Plessey, GS1 composite code ... |
2D code types | PDF417, Data Matrix, QR Code ... |
Contact Smart Card Interface | |
Supported Contact Card ICs | All major ISO/IEC 7816 compliant Smart Card IC support |
Smart Card Interface Speed | Up to 600 kbps (depending on card) , TA1=97 |
Contact Card Slot | 2 * ID-1 Sliding Contact Sockets (8 pin) (One of them can be used as SAM) |
Contactless Smart Card Interface | |
Supported Contactless Standards | ISO/IEC 14443 A&B, ISO/IEC18092 |
Supported Contactless Card ICs | MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, NFC Forum Tag types 1/2/3/4 |
Data Transfer Rate | 106/212/424/848 kbits/s, depending on card IC |
Driver and Software | |
PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), • Android 4.0 and higher |
Software | PC/SC API; CT-API (through wrapper on top of PC/SC); M-Card API (through wrapper on top of PC/SC) |
Operating Conditions | |
Power Supply | USB Bus-powered |
Dimensions(L x W x H) | 102 x 78 x 52 mm |
Weight | 249 g ± 5% |
Connector | 1.5m USB cable with USB type A connector |
Certifications / Compliance | |
Systems/Standards | ISO/IEC 7816, ISO/IEC 14443, USB 2.0 Full Speed, CCID, Microsoft® WHQL |
Regulatory/Environmental | CE, RoHS |
