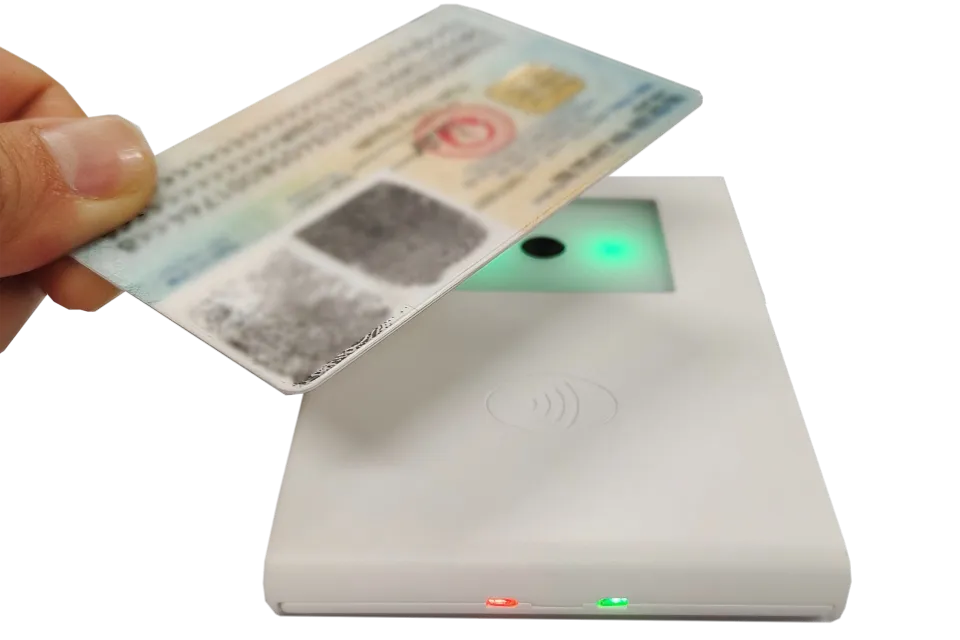

The MCR7001 integrates QR code scanning and contactless NFC technologies into an ultra-slim, compact device that quickly captures and processes multiple credential types.
This multifunctional reader is ideal for government, healthcare, banking, transportation, and security environments requiring versatile authentication in space-constrained settings.
One of the key features of the MCR7001 is the professional optical scanning technology that accurately reads both printed codes and electronic screen codes from smartphones, with breakthrough performance in wide scanning range and high-speed recognition even on damaged or reflective surfaces.
The ultra-slim form factor makes it perfect for environments where space is at a premium, while the integrated contactless technology ensures compatibility with all major NFC and 13.56 MHz credentials.
To ensure flexibility for the future, the MCR7001 supports all major contactless card ICs and standards, with SmartOS™ firmware for long-term reliability.
Government: Public service systems, Citizen authentication
Transportation: Ticketing systems, Transit access
Healthcare: Medical registration, Patient identification
Image type CMOS sensor with 5mil recognition accuracy, supports all major 1D and 2D code types
Up to 848 kbps for contactless interface for maximum end-user convenience
Uses native supported CCID drivers within Windows, Linux, and Android operating systems
Compact 106 x 72 x 18mm form factor for easy operation in limited-space environments
Wide scanning range (25-440mm), high-speed decoding, and reads both printed and electronic screen codes
Supports 13.56 MHz contactless and NFC technologies
Compatible with all major contactless card ICs including MIFARE, FeliCa, Calypso, CD21, and NFC Forum Tag types
PC/SC and CCID compliant with Windows, Linux, and Android for plug-and-play integration
Low power consumption of <200mA excluding card, <300mA with card
Ideal for e-Government, e-Health, access control, identity authentication, digital signature, network security, banking, finance, and public transportation
Parameter | Specification |
Host Interface | USB 2.0 CCID (USB 1.1/3.0 compliant) |
Communication Speed | 12 Mbps (USB 2.0 full speed) |
Bar Code Scanner | |
1D code types | EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、MSI Plessey、RSS-14、Restrictive RSS、Expandable RSS ... |
2D code types | QR Code、PDF417、DataMatrix（ECC200） ... |
Contactless Smart Card Interface | |
Supported Contactless Standards | ISO/IEC 14443 A&B Part 1~4, ISO/IEC18092 |
Supported Contactless Card ICs | MIFARE Classic® family, MIFARE Ultralight family, MIFARE Plus family, MIFARE DESFire family, FeliCa™, Calypso, CD21, NFC Forum Tag Types 1/2/3/4 |
Data Transfer Rate | 106/212/424/848 kbits/s, depending on card IC |
Driver and Software | |
PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, Windows XP, • MacOS 10.9.x - 12.2.x, • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), • Android 8.0 and above |
Software | PC/SC API |
Operating Conditions | |
Dimensions(L x W x H) | 106x 72 x 18mm |
Weight | 130g ± 5% |
Connector | 1.5m USB cable with USB type A connector |
Status Indicator | Dual color LED |
Certifications / Compliance | |
Systems/Standards | ISO/IEC 14443, USB 2.0 Full Speed, USB-CCID, Microsoft® WHQLs |
Regulatory/Environmental | CE, RoHS |
