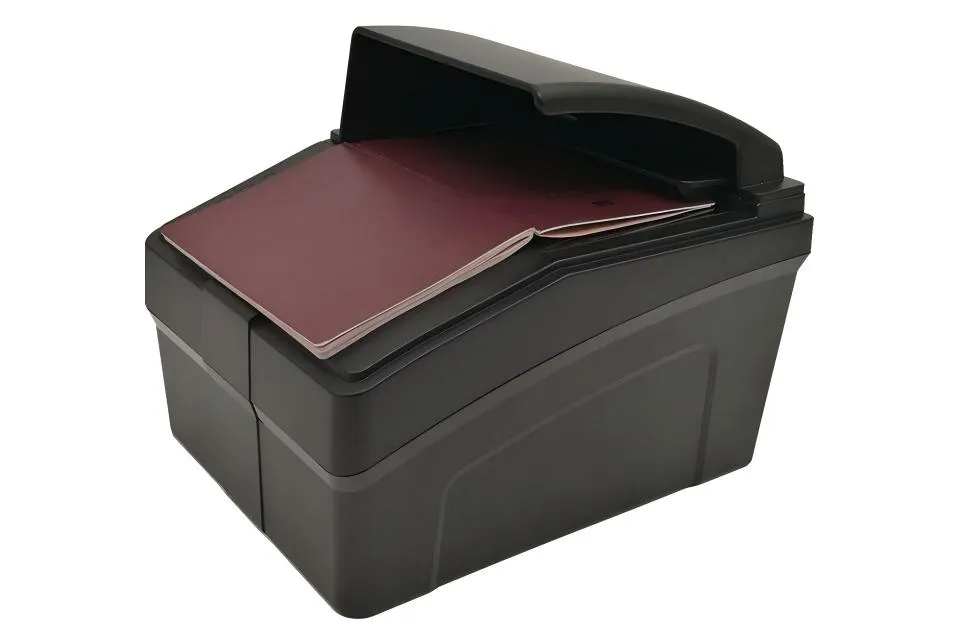

The MEPR100+ is a compact full‑page passport reader designed for organizations that need reliable document authentication and RFID verification in limited‑space or customer‑facing environments. Its high‑resolution imaging system captures full‑page documents clearly and accurately, enabling verification of passports, ID cards, visas, entry permits, and driver’s licenses without requiring a large device footprint.
With fast MRZ reading, RFID chip access, multi‑illumination support, and automated data extraction, the MEPR100+ delivers consistent performance across banks, hotels, telecom operators, government counters, and service desks. Its space‑efficient design and seamless integration capabilities make it an ideal choice for high‑traffic identity verification workflows where speed, accuracy, and ease of use are essential.
Travel: Airports, Airline service counters
Transportation: Railway stations, Ticketing desks
Hospitality: Hotel check-in, Reception desks
Finance: Currency exchange counters, Financial services
Security: Gate control, Security checkpoints
Captures complete document pages in a smaller footprint, ideal for counters and limited‑space environments.
Uses white and IR lighting to reveal key document features and support reliable authentication.
High‑accuracy reading of machine‑readable zones across passports, visas, and ID cards.
Reads e‑passport and e‑ID chip data quickly and reliably for enhanced verification workflows.
Auto‑trigger scanning when a document is placed on the glass, improving speed and user experience.
Instantly transfers MRZ, chip data, photos, and metadata into backend systems.
Supports Windows, Linux, and Android with a full SDK for seamless deployment.
| parameter | details |
| Resolution | Sensor: 3.1 Megapixels, CMOS, RGB 24 bit color system |
| Standard 400 DPl image resolution | |
| llumination | Near IR B900, 860nm |
| White visible, 430-680nm | |
| UV A,365nm | |
| OCR | Numbers, letters, text (Simplified Chinese, Traditional Chinese, English), patterns |
| Success rate ≥99.8% | |
| RFID | ICA0 9303 specification Parts 1-4;↵ |
| Support ISO 14443 Type A/Type B | |
| Speed up to848Kbps | |
| Interface | USB2.0 |
| Supports USB interface expansion | |
| Status Indicators | Red - Read Error LED |
| Blue - Ready LED | |
| Green - Reading LED | |
| Power | External 5VDC 2A |
| Input voltage 100 - 240VAC, | |
| Frequency 50 - 60Hz | |
| Standard Dimensions | Length: 20.4 cm |
| Width: 17cm | |
| Height: 12.6 cm (without light shield) | |
| Net Weight: < 1kg | |
| Gross Weight: < 2 kg | |
| Packing size: 37*26*25 cm | |
| Minimum PC Specification | Windows: 2.0 GHz Intel Core i3, 2 GB RAM, 100 GB of Hard Drive |
| Android: CPU 4 core, 1.6G or better, RAM 2G or better | |
| Operating | Humidity: 20%-85%(non-condensing) |
| Temperature: Operating -10-55°C, Storage -20°C-60°C | |
| SDKs | C/C++、 C#、HTML、Java |
| Operating systems | Windows, Android, Linux |
