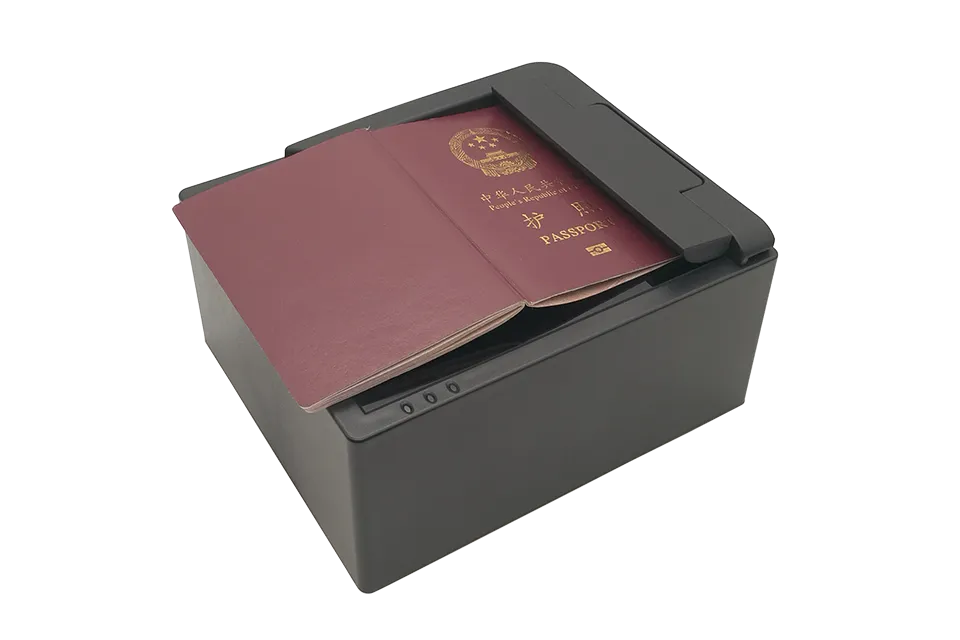

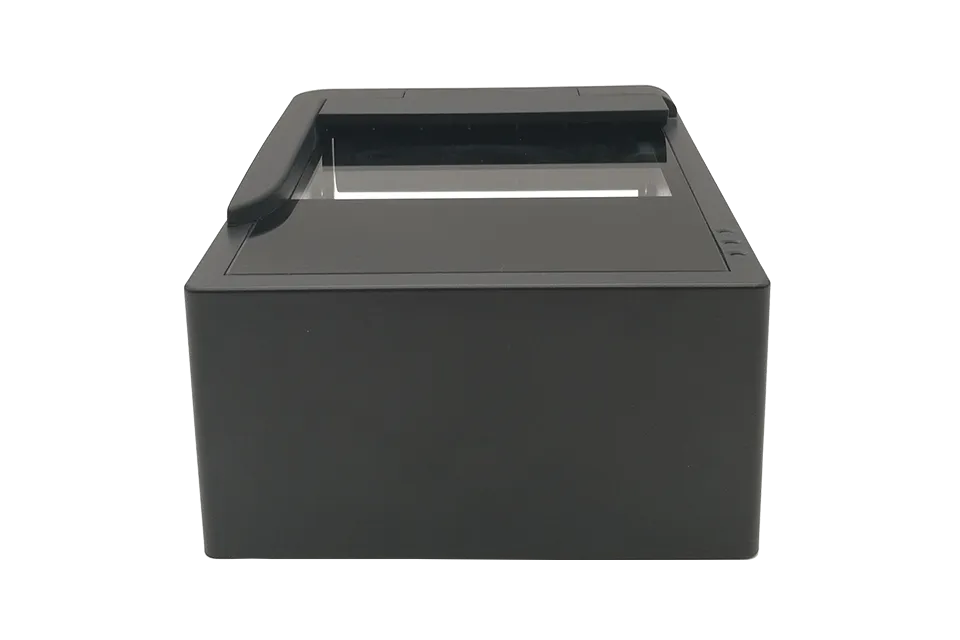

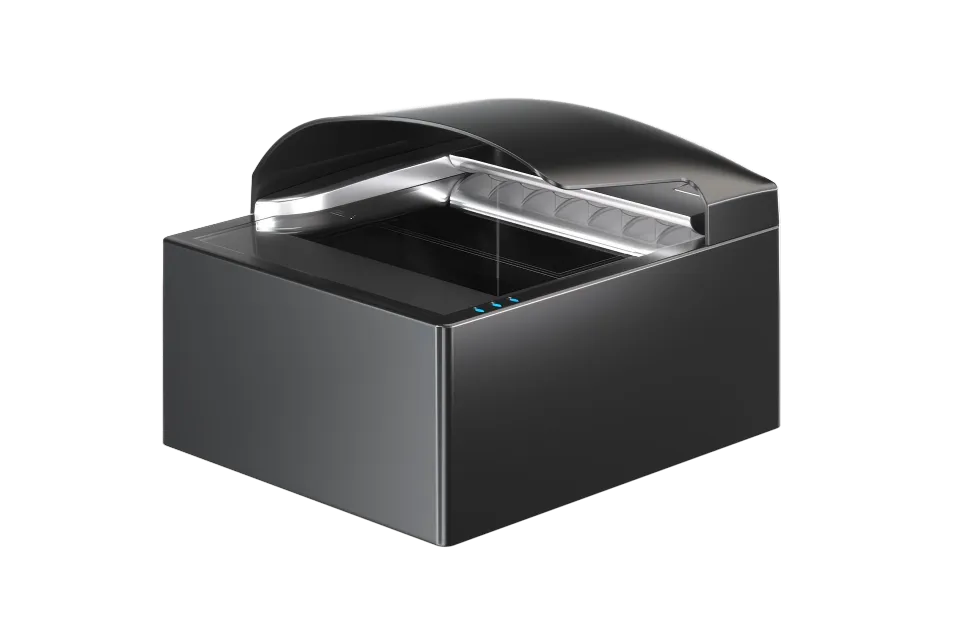

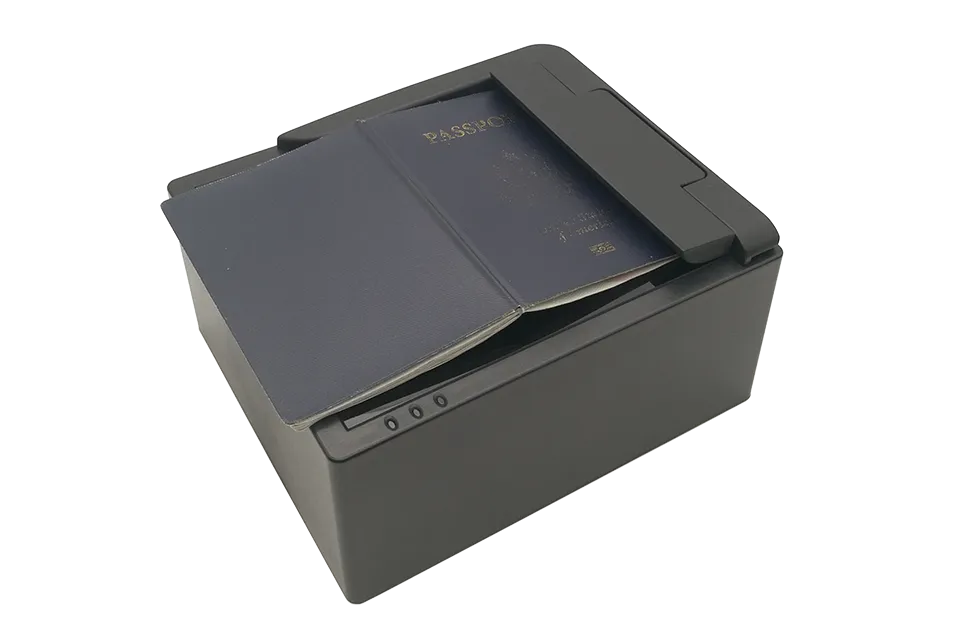

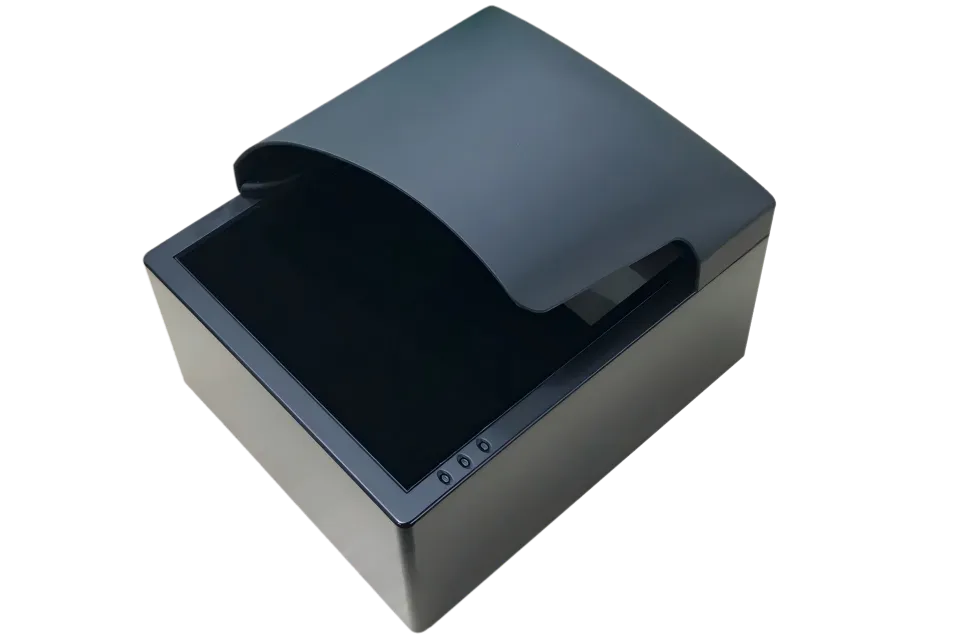

The MEPR500+ is a compact, high-performance full page reader built for easy integration into kiosks, eGates, and terminals. Designed for passports, ID-1 documents, driving licence and visas, it scans both sides in one pass, speeding up ID checks.
With its document and contactless reading capability, it delivers fast and accurate results. Paired with a complete SDK, it integrates smoothly and supports secure identity verification across industries from aviation to hospitality.
Aviation
Enables fast and secure passenger document verification at check-in and boarding gates using OCR, MRZ, and NFC reading.
Border Management
Supports high-security identity checks by reading travel documents and biometric data for automated and manual border control processes.
Kiosks
Powers self-service kiosks by automatically scanning passports, IDs, and barcodes for user onboarding and authentication.
Hospitality
Streamlines guest check-in by instantly capturing and verifying ID documents and passport information at hotel reception systems.
Combines document and contactless chip (NFC/RFID) reading in a single compact device.
Uses visible, IR B900, and UV-A light to reveal embedded security features and detect forgeries.
Reads 1, 2, and 3-line MRZ codes on ICAO-compliant documents with ≥99.8% accuracy.
Its IP50 rugged case and 1.1 kg net weight make it ideal for high-traffic environments and kiosks.
Includes complete SDK for Windows and Android, enabling seamless integration into existing systems.
PC/SC compliant interface works immediately with standard contactless readers — no extra drivers needed.
Scans and extracts data in less than 2 seconds for high-throughput environments.
Engineered for continuous use in airports, border control, and self-service kiosks with 0-50°C operating range.
| parameter | details |
| Resolution | Sensor: 3.1 Megapixels, CMOS, RGB 24 bit color system |
| Standard 400 DPl image resolution | |
| llumination | Near IR B900, 860nm |
| White visible, 430-680nm | |
| UV A,365nm | |
| OCR | Numbers, letters, text (Simplified Chinese, Traditional Chinese, English), patterns |
| Success rate ≥99.8% | |
| RFID | ICA0 9303 specification Parts 1-4;↵ |
| Support ISO 14443 Type A/Type B | |
| Speed up to848Kbps | |
| Bar code reading | 1D code：Code 128, Code39 … |
| 2D code：PDF417，QR, Data Matrix … | |

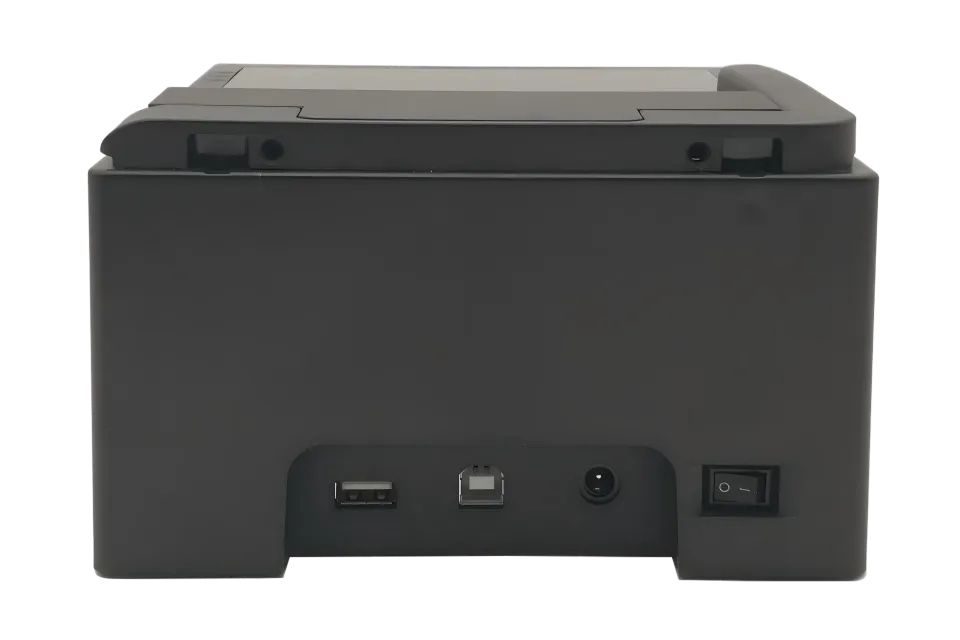

| Interface | USB2.0 |
| Supports USB interface expansion | |
| Status Indicators | Red - Read Error LED |
| Blue - Ready LED | |
| Green - Reading LED | |
| Power | External 5VDC 2A |
| Input voltage 100 - 240VAC, | |
| Frequency 50 - 60Hz | |
| Standard Dimensions | Length: 19.2 cm |
| Width: 16.3 cm | |
| Height: 9.5 cm (without light shield) | |
| Net Weight: < 1.1 kg | |
| Gross Weight: < 2.1 kg | |
| Packing size: 37*26*25 cm | |
| Minimum PC Specification | Windows: 2.0 GHz Intel Core i3, 2 GB RAM, 100 GB of Hard Drive |
| Android: CPU 4 core, 1.6G or better, RAM 2G or better | |
| Operating | Humidity: 20%-85%(non-condensing) |
| Temperature: Operating -10-55°C, Storage -20°C-60°C | |
| SDKs | C/C++、 C#、HTML、Java |
| Operating systems | Windows, Android, Linux |
