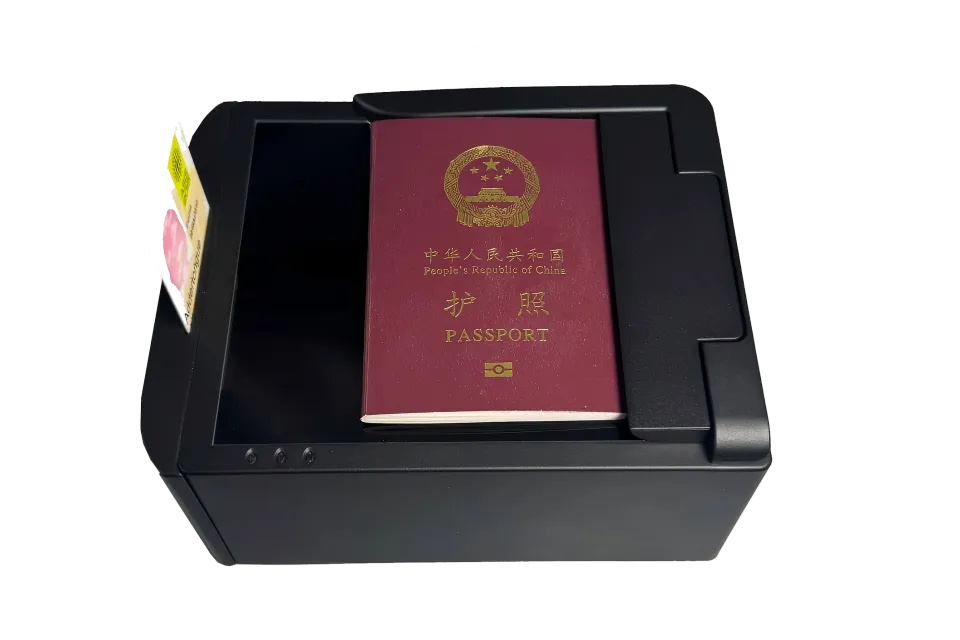

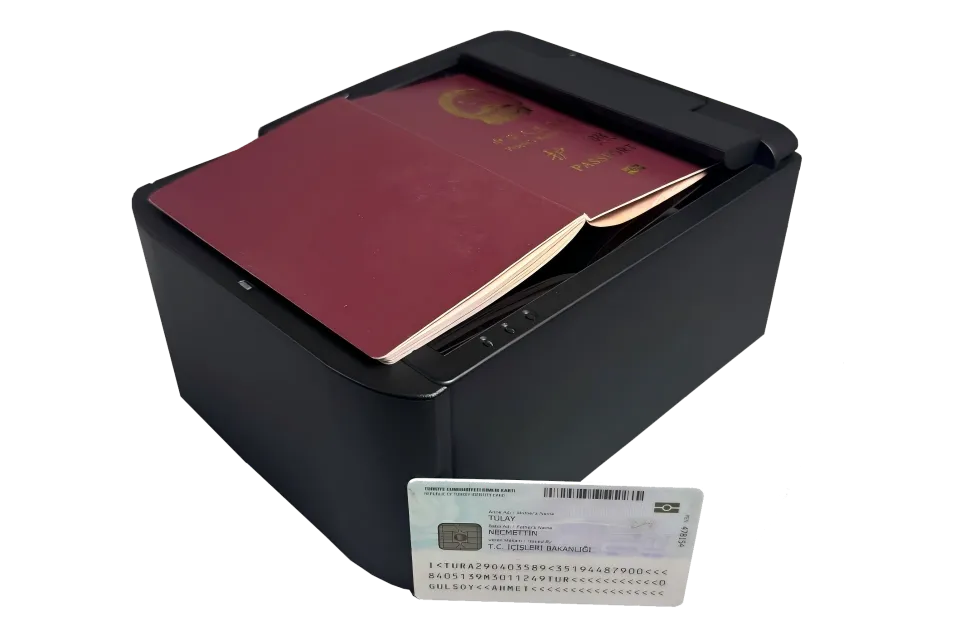

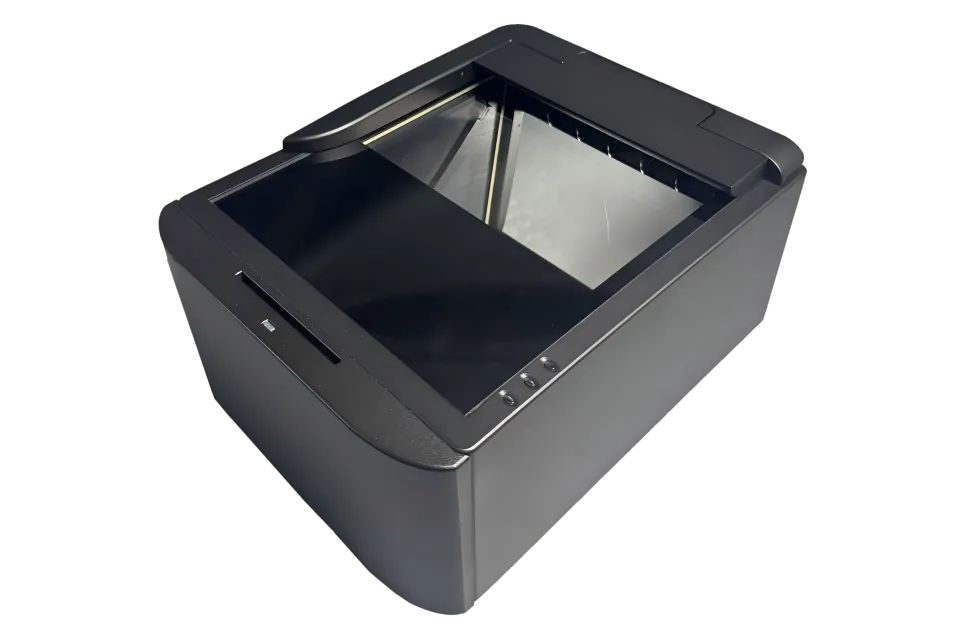

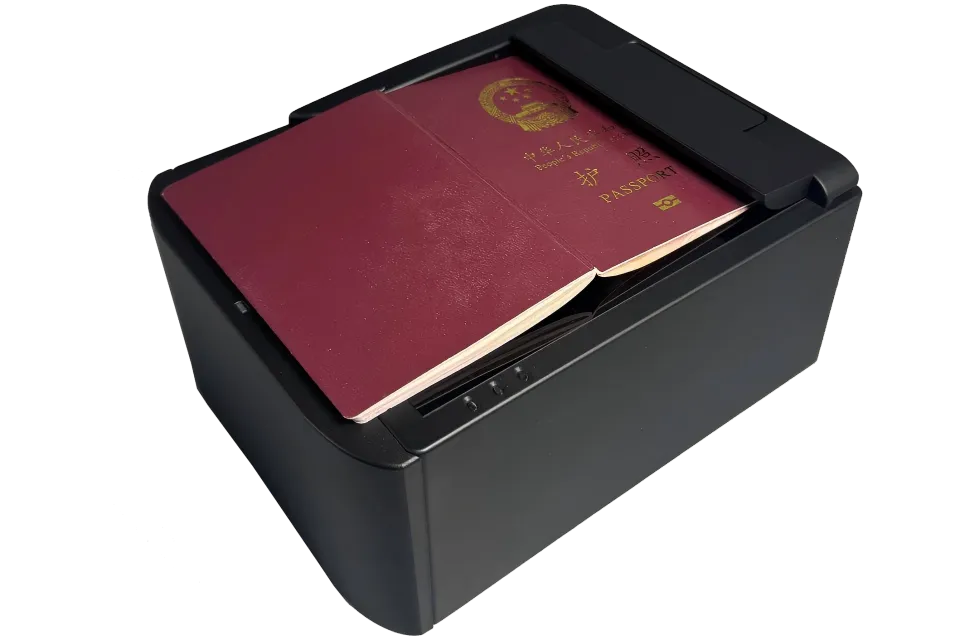

The MEPR500+SCR is a compact, high-performance full page reader built for easy integration into kiosks, eGates, and terminals. Designed for passports, ID-1 documents, driving licence and visas, it scans both sides in one pass, speeding up ID checks.
With its document, contact and contactless reading capability, it delivers fast and accurate results. Paired with a complete SDK, it integrates smoothly and supports secure identity verification across industries from aviation to hospitality.
Aviation
Enables fast and secure passenger document verification at check-in and boarding gates using OCR, MRZ, and NFC reading.
Border Management
Supports high-security identity checks by reading travel documents and biometric data for automated and manual border control processes.
Kiosks
Powers self-service kiosks by automatically scanning passports, IDs, and barcodes for user onboarding and authentication.
Hospitality
Streamlines guest check-in by instantly capturing and verifying ID documents and passport information at hotel reception systems.
Combines document, contact chip (ISO 7816), and contactless chip (ISO 14443) reading in a single compact device.
Uses visible, IR B900, and UV-A light to reveal embedded security features and detect forgeries.
Reads 1, 2, and 3-line MRZ codes on ICAO-compliant documents with ≥99.8% accuracy.
Includes complete SDK for Windows, Android, and Linux, enabling seamless integration into existing systems.
Its IP50 rugged case and 1.3 kg net weight make it ideal for high-traffic environments and kiosks.
Scans and extracts data in less than 2 seconds for high-throughput environments.
Engineered for continuous use in airports, border control, and self-service kiosks with 0-50°C operating range.
| parameter | details |
| Resolution | Sensor: 3.1 Megapixels, CMOS, RGB 24 bit color system |
| Standard 400 DPl image resolution | |
| llumination | Near IR B900, 860nm |
| White visible, 430-680nm | |
| UV A,365nm | |
| OCR | Numbers, letters, text (Simplified Chinese, Traditional Chinese, English), |
| Patterns Success rate ≥99.8% | |
| RFID | ICA0 9303 specification Parts 1-4;↵ |
| Support ISO 14443 Type A/Type B | |
| Speed up to 848Kbps | |
| Contact card reading | ISO/IEC 7816 Part 1 to 4 |
| Speed up to 848Kbps | |
| Bar code reading | 1D code：Code 128, Code39 … |
| 2D code：PDF417，QR, Data Matrix … | |
| Interface | USB2.0 |
| Supports USB interface expansion | |
| Status Indicators | Red - Read Error LED |
| Blue - Ready LED | |
| Green - Reading LED | |
| Power | External 5VDC 2A |
| Input voltage 100 - 240VAC, | |
| Frequency 50 - 60Hz | |
| Standard Dimensions | Length: 21.2cm |
| Width: 16.3 cm | |
| Height: 9.5 cm (without light shield) | |
| Net Weight: < 1.3kg | |
| Gross Weight: < 2.3kg | |
| Packing size: 37*26*25 cm | |
| Minimum PC Specification | Windows: 2.0 GHz Intel Core i3, 2 GB RAM, 100 GB of Hard Drive |
| Android: CPU 4 core, 1.6G or better, RAM 2G or better | |
| Operating | Humidity: 20%-85%(non-condensing) |
| Temperature: Operating -10-55°C, Storage -20°C-60°C | |
| SDKs | C/C++、 C#、HTML、Java |
| Operating systems | Windows, Android, Linux |
