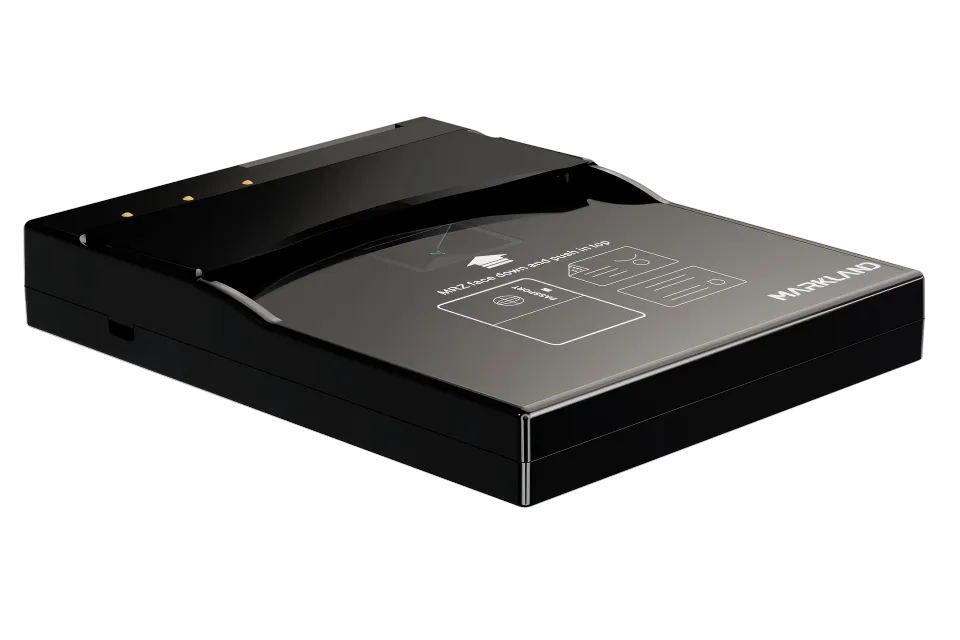

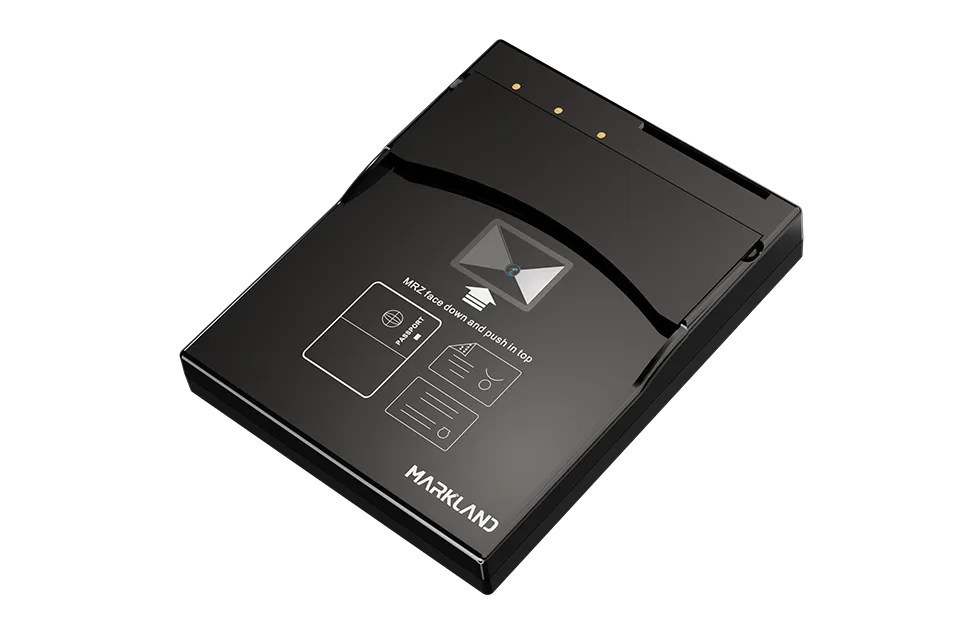

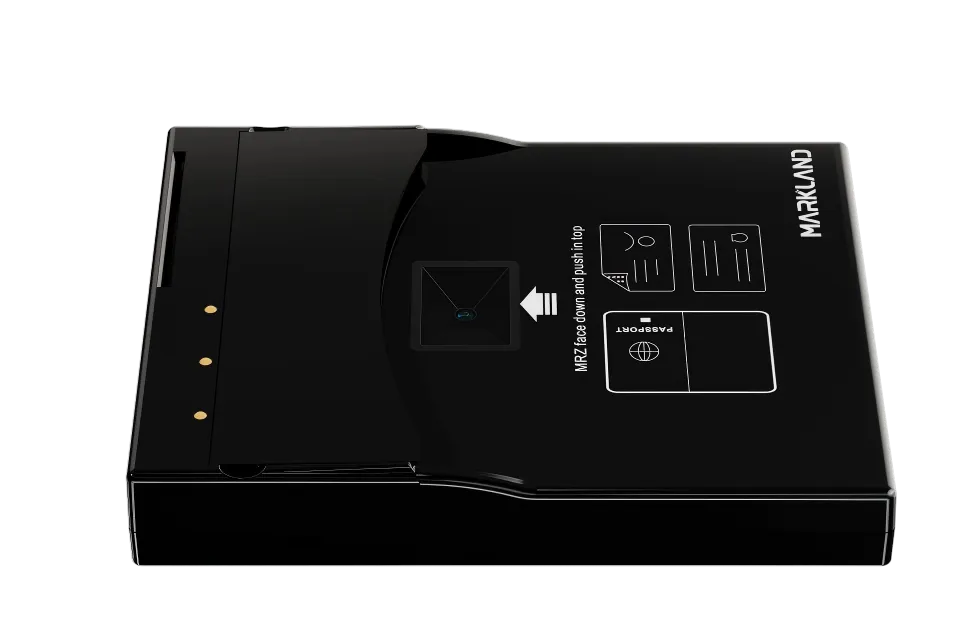

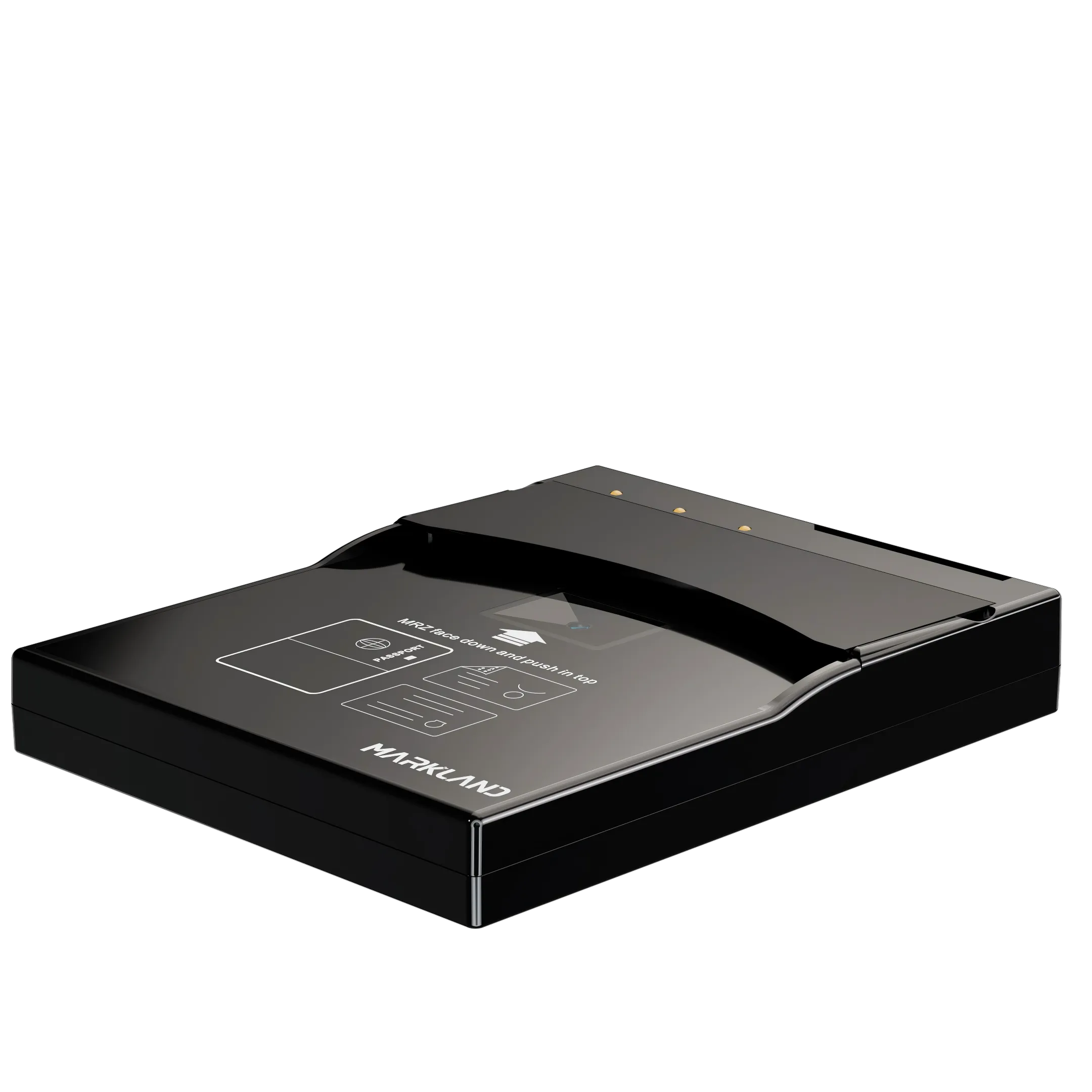

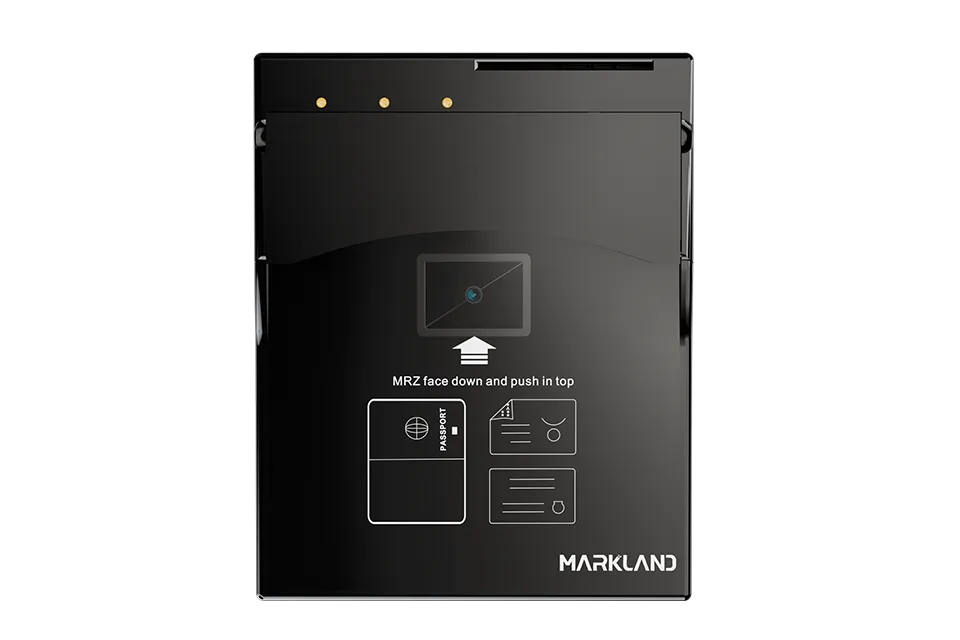

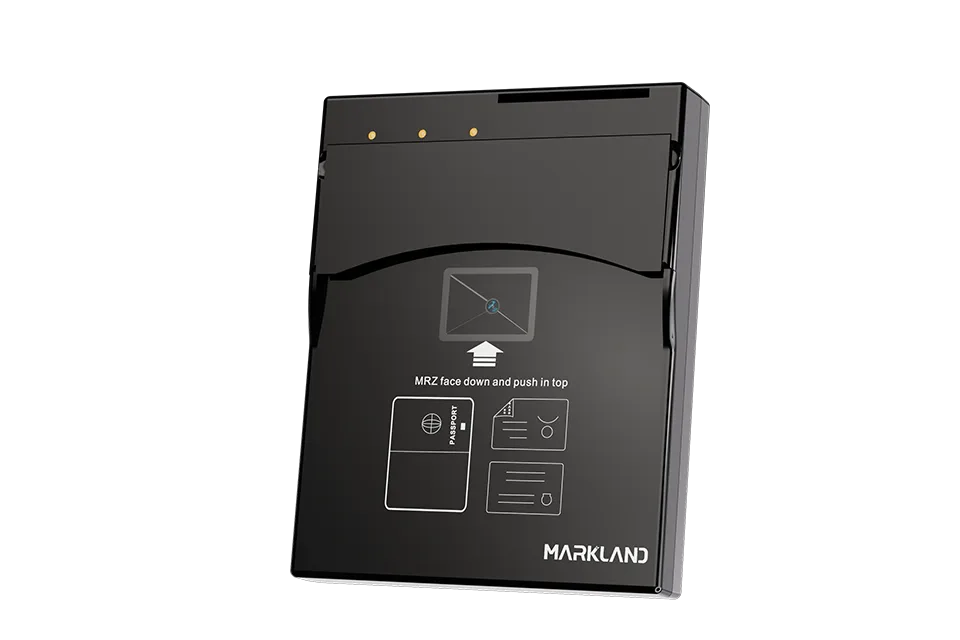

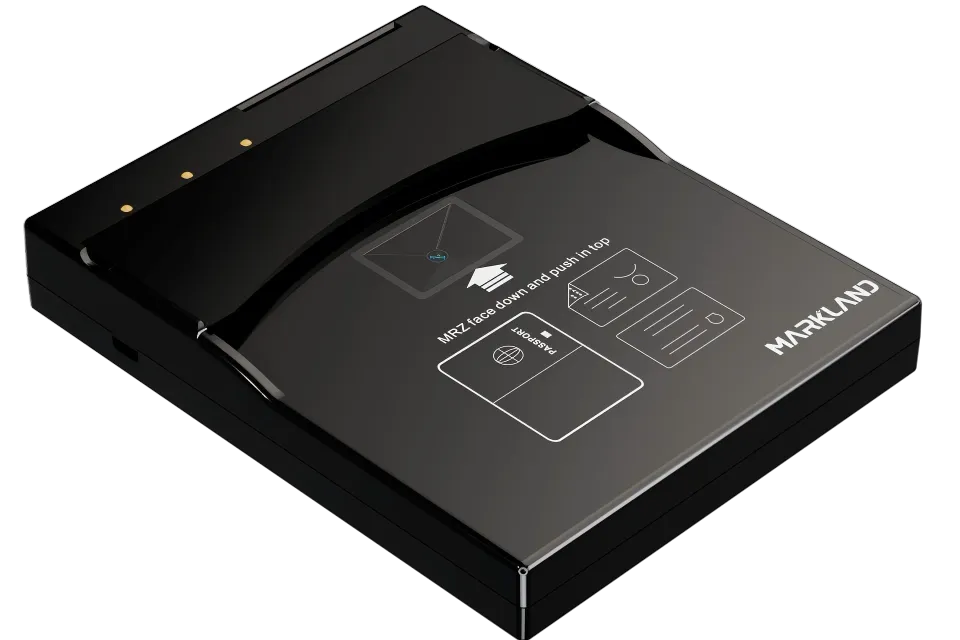

The MEPR10‑QR is a compact, multi‑functional half‑page passport reader designed for organizations that require fast, accurate, and versatile identity verification.
It combines high‑clarity imaging, ICAO 9303 MRZ recognition, ISO/IEC 14443 Type A/B RFID chip access, and integrated 1D/2D barcode decoding in a single, space‑efficient device.
This makes the MEPR10‑QR ideal for environments where both physical and digital identity credentials must be authenticated such as mobile boarding passes, QR‑based check‑ins, e‑passports, and traditional travel documents. Its compact footprint, cross‑platform compatibility, and automated data extraction capabilities make it a powerful solution for service counters, kiosks, telecom centers, hotels, banks, and government service desks.
Hospitality: Hotels, Reception desks
Telecommunications: SIM registration, Customer onboarding
Retail: Vending machines, Age verification systems
Travel: Travel agencies, Tour operators
Mobility: Car rental desks, Customer verification
Accurate reading of ICAO 9303 machine‑readable zones.
ISO/IEC 14443 Type A/B support with 106–848 kbps communication for fast e‑passport and e‑ID verification.
1D/2D decoding for mobile IDs, boarding passes, and QR‑based workflows.
Auto‑trigger scanning when a document is placed on the reader.
Instant transfer of MRZ data, chip data, barcodes, photos, and metadata into backend systems.
Ideal for counters, kiosks, and limited‑space environments.
Compatible with Windows, Linux, and Android via SDK.
Engineered for continuous operation in high‑traffic service environments.
| Parameter | details |
| Image acquisition | Active Scan Area: (123 x 20 mm) |
| Light source | Near-infrared B900, 860 nm |
| Communication interfaces | USB 2.0 CCID (USB 1.1/3.0 compatible) |
| Light | 3 LEDs |
| Physical Dimensions (LWH) | 176.5*140.6*26 mm 260g± 5%(MEPR10-OCR) / 300g± 5%(MEPR10) / 315g± 5%(MEPR10-QR) |
| Power supply and communication interfaces | Input Voltage: +5VDC (USB Type C Direct Powered) Cable: USB Type C |
| The operating system is supported | Windows, Android, Linux (some domestic systems: Kirin, Feiteng Windows, Linux, Android..., support Loongson, Zhaoxin, Shenteng, Kirin and other Xinchuang PC operating systems.) |
