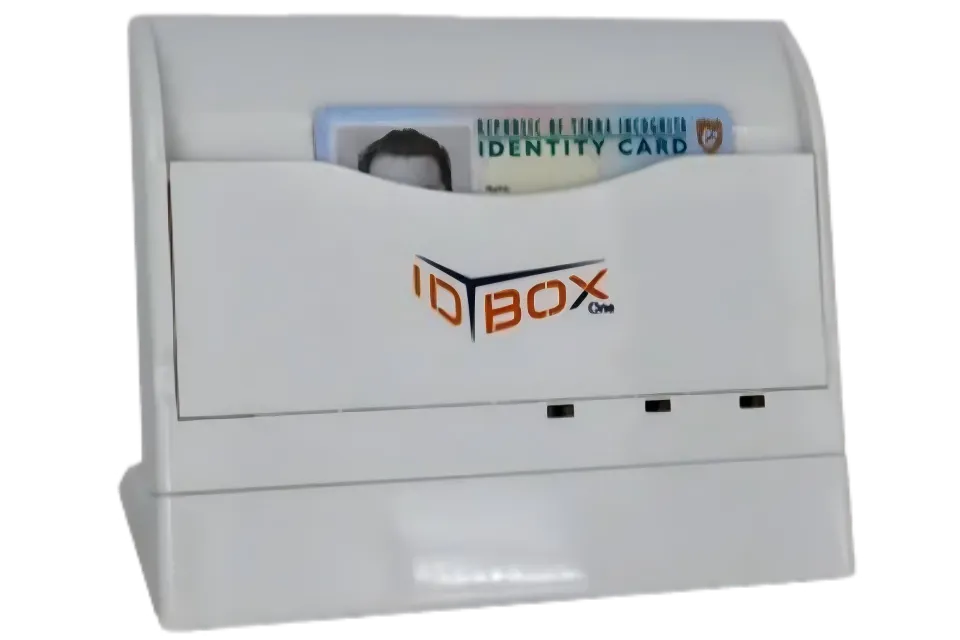

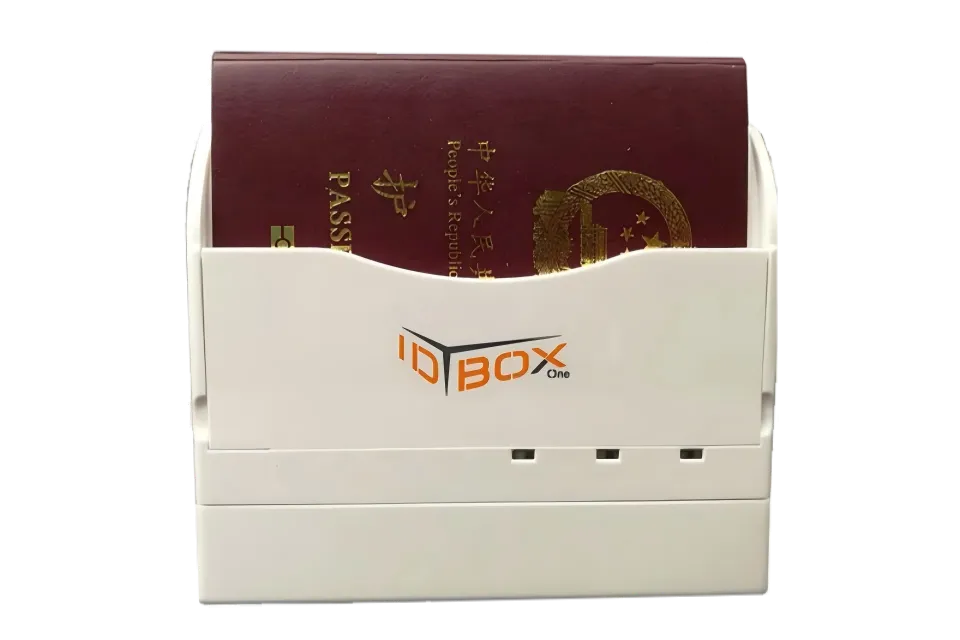

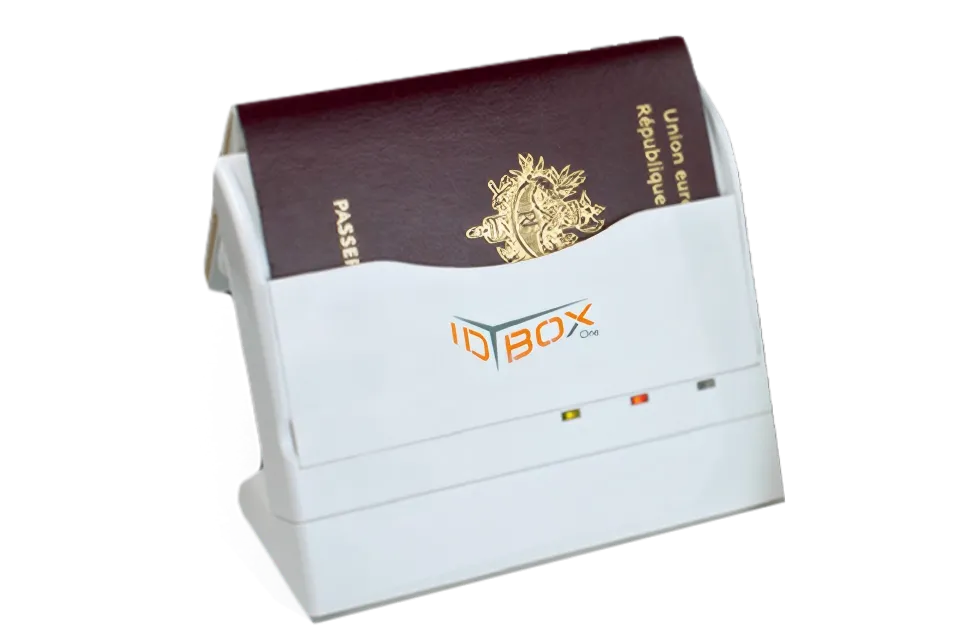

The ID BOX 121 is a multi‑function half‑page document reader designed for fast, accurate, and secure identity verification across a wide range of service environments.
Equipped with six high‑performance cameras and advanced MRZ recognition technology, it captures and processes ICAO 9303‑compliant travel documents with exceptional speed and precision.
It supports MRZ reading, RFID chip access , optical character recognition and automatic document detection. Its compact, space‑efficient design makes it ideal for kiosks, self‑service terminals, hotel check‑in counters, airport control points, banks, telecom registration desks, and other high‑traffic identity verification workflows.
Markland is the exclusive APAC distributor for Elyctis products, providing regional sales and support across the Asia-Pacific region
Finance: Banks, Customer onboarding
Hospitality: Hotels, Reception desks
Telecommunications: Service centers, Subscriber verification
Mobility: Car rental services, Customer processing
Education: Student registration, Campus administration
MRZ, RFID, OCR, and multiple document types including passports, Home Return Permits, Taiwan Compatriot Permits, and Border Resident Certificates.
Ensures fast, accurate capture and high‑quality image output.
ICAO 9303‑compliant reading for global travel documents.
ISO/IEC 14443 Type A/B support with <1s read/write speed depending on card type.
Supports multilingual text extraction for diverse document types.
Auto‑trigger scanning when a document is inserted.
Ultra‑thin, compact form factor ideal for embedded and kiosk integrations.
Windows, MacOS, Linux, and Android support with CCID and PC/SC compliance.
| Parameter | details |
| Communication interfaces | USB 2.0 full speed (12 Mbps) |
| Temperature | In operation: 0°C to +50°C Storage: -40°C to +80°C |
| Resolution | 500 ppi |
| Physical Dimensions (LWH) | 140 x 90 x 105 mm |
| Communication | CCID compliant (Windows, MacOS, Linux) Custom CCID library (Android) PC/SC 2.01 compliant (Windows, MacOS, Linux) PC/SC .net wrapper (Windows) |
| Supported protocols(Contactless) | ISO 14443 Part 1 to 4, type A/B – T=CL and Mifare All Mifare products: Ultralight, 1K, 4K, Plus, DESFire EV1, Smart MX,… |
| The operating system is supported | Windows, MacOS, Linux, Android |
