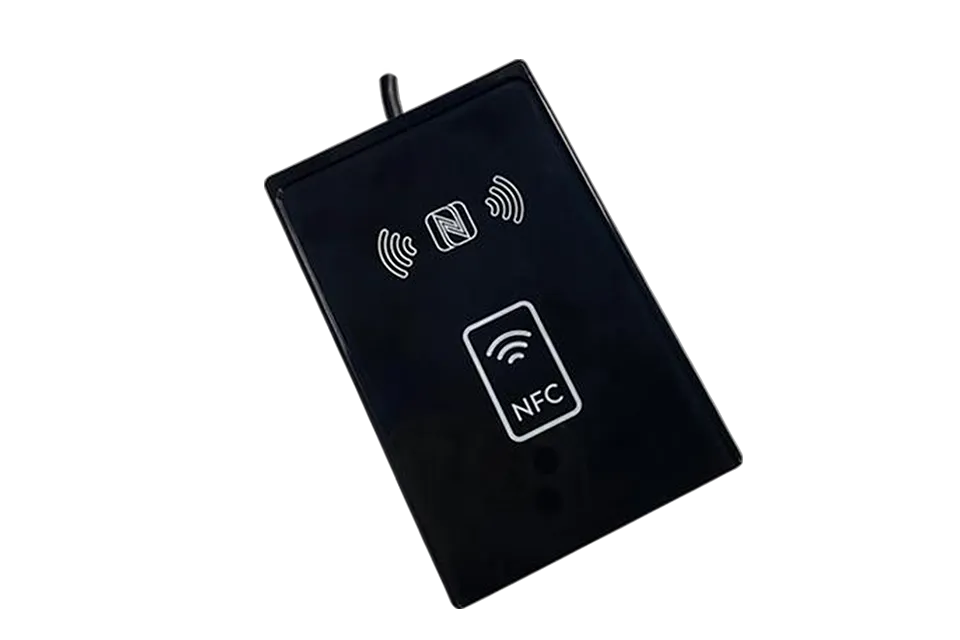

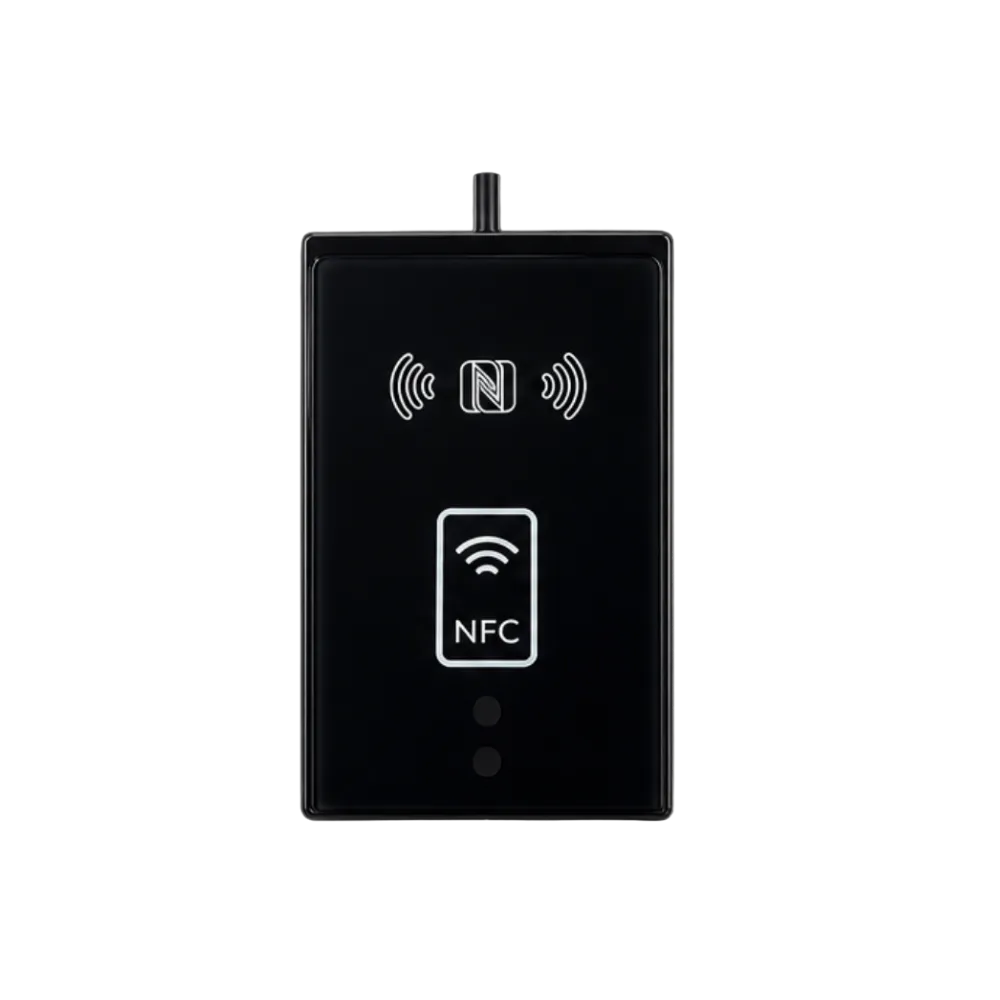

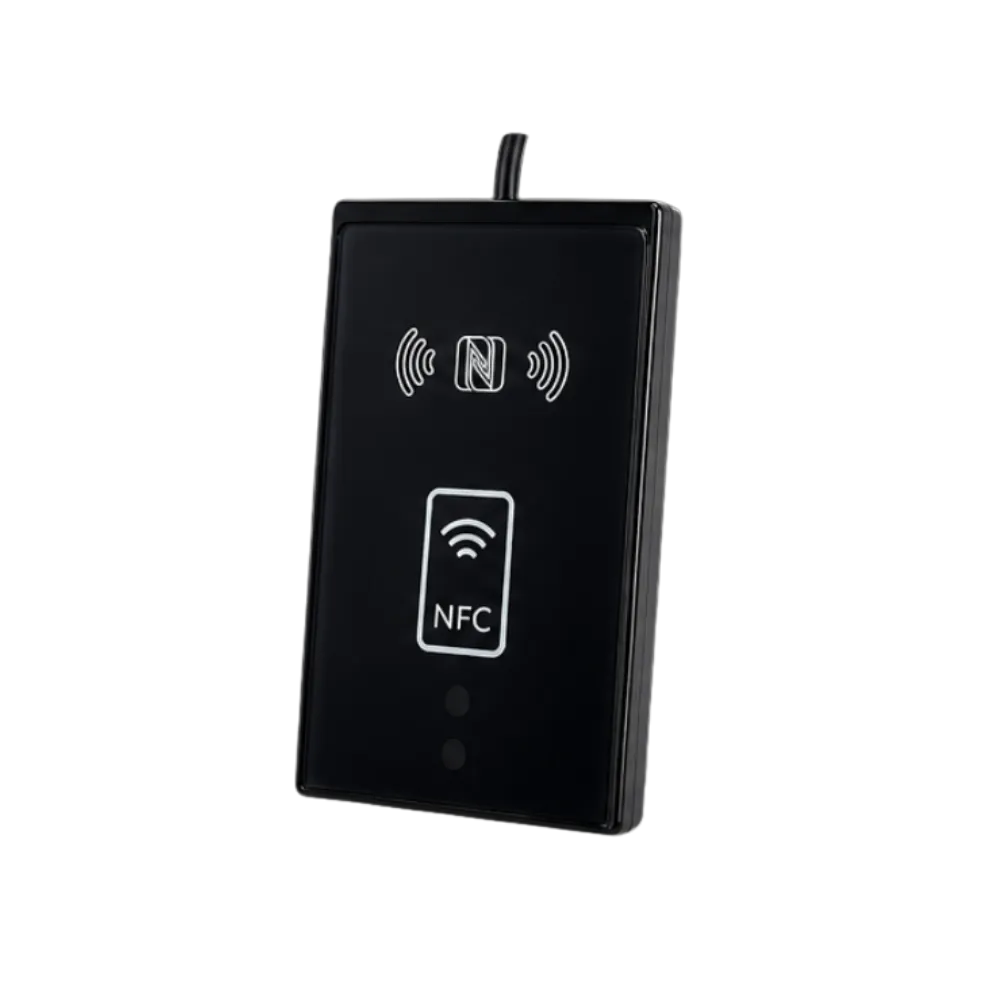

The MCR553 is a modern, ultra‑slim contactless smart card reader designed for organizations that require secure, fast, and space‑efficient authentication. Fully compliant with ISO/IEC 14443 and supporting 848 kbps transaction speeds, it ensures smooth and reliable access using MIFARE, FeliCa, Calypso, and NFC credentials.
Its 7.8 mm slim profile makes it ideal for desktops, kiosks, and limited‑space environments, while optional stand kits provide ergonomic flexibility.
Government: e-Government services, Citizen authentication points
Security: Access control systems, Secure entry terminals
Transportation: Ticketing systems, Transit validation points
Can be used with standard PCs and workstations, as well as with the optional stand base kit for flexible desktop deployment
Features a compact design of just 7.8 mm for easy and ergonomic operation in limited-space environments
Supports mixed credential populations including MIFARE, FeliCa, Calypso and NFC Forum Tag types
848 kbps support in ISO/IEC 14443 for maximum end-user acceptance
CCID protocol support with Windows, Linux, macOS and Android for seamless integration with minimal administration
Fully compliant with ISO/IEC 14443, USB 2.0 Full Speed, CCID and Microsoft® WHQL standards
Engineered for quick and straightforward deployment, ensuring protection of personal and corporate data while adhering to compliance and cybersecurity standards
Low power consumption of only 50mA for cost-effective and sustainable operation
Enables smooth transition from traditional technologies into emerging NFC applications
| Parameter | Details |
| Host Interface | USB 2.0 CCID (USB 1.1/3.0 compliant) |
| Communication Speed | 12 Mbps (USB 2.0 full speed) |
| Supported Contact Card ICs | • MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa™, Calypso, CD21, NFC Forum Tag types 1/2/3/4 |
| Data Transfer Rate | 106, 212, 424, or 848 kpbs, depending on card IC |
| Antenna | Integrated |
| Driver and Software | |
| PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: |
| • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, | |
| • MacOS 10.9.x - 12.2.x, | |
| • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), | |
| • Android 8.0 and higher | |
| Software | PC/SC API; CT-API (through wrapper on top of PC/SC); M-Card API (through wrapper on top of PC/SC) |
| Operating Conditions | |
| Power Supply | USB Bus-powered |
| Dimensions(L x W x H) | 90 x 58 x 7.8 mm |
| Weight | 48 g ± 5% |
| Connector | 1.5m USB cable with USB type A connecto |
| Certifications / Compliance | |
| Systems/Standards | ISO/IEC 14443, USB 2.0 Full Speed, CCID, Microsoft® WHQL |
| Regulatory/Environmental | RoHS |
