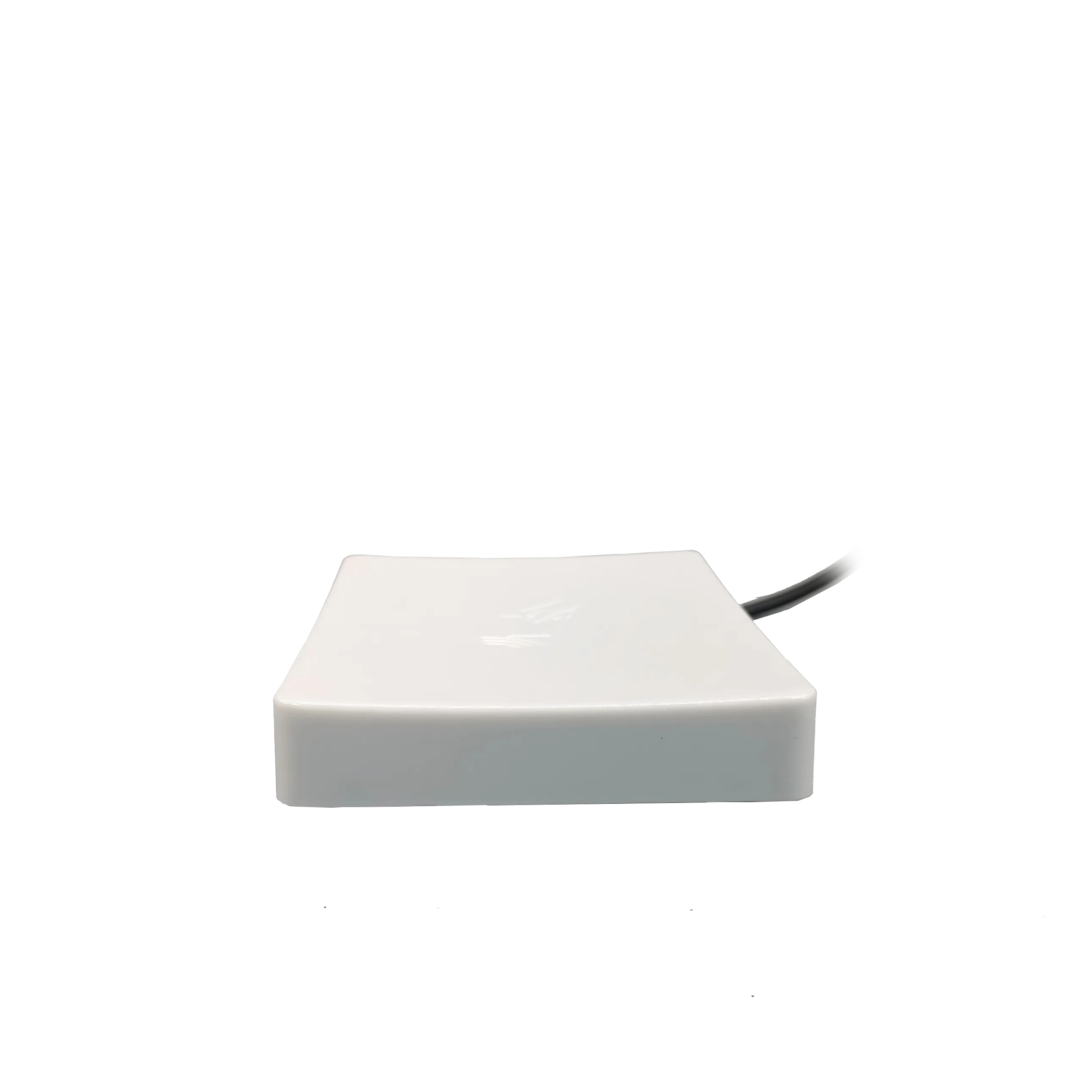

The MCR0110v5 is a high‑security contactless smart card reader designed for organizations requiring enhanced protection through a Secure Access Module (SAM). Fully compliant with ISO/IEC 14443 and ISO/IEC 7816, it supports both contactless and contact smart cards, making it ideal for mixed‑credential environments.
With optional SAM support, it provides hardware‑level encryption and key management for sensitive applications such as banking, government authentication, and secure enterprise access.
Enterprise: Secure network logon, Workstation authentication
Hospitality & Events: Hotel check-in desks, Event access points
Education: Campus ID systems, Student authentication terminals
Can be used with standard PCs and workstations, supporting both contact and contactless credentials in mixed environments
Low power consumption with <120 mA excluding SAM, <185 mA with SAM, and <500 uA in standby mode
Protected Secure Access Module (SAM) socket adds an extra layer of transaction security for sensitive applications
Combines contactless (13.56 MHz) and contact (ISO/IEC 7816) smart card capabilities in a single device
Optimized with 848 kbps for contactless and 600 kbps for contact interfaces
CCID protocol support with Windows, Linux, macOS and Android for seamless integration with minimal administration
Fully compliant with ISO/IEC 14443, ISO/IEC 7816, USB 2.0 Full Speed, CCID and Microsoft® WHQL standards
Engineered with optional SAM socket for robust multi-factor authentication, ensuring protection against fraud and unauthorized access while adhering to compliance and cybersecurity standards
Ideal for network login, secure web-based transactions and NFC-based customer loyalty programs
| Parameter | Details |
| Host Interface | USB 2.0 CCID (USB 1.1/3.0 compliant) |
| Communication Speed | 12 Mbps (USB 2.0 full speed) |
| Contact Smart Card Interface | |
| Supported Standards | ISO/IEC 7816 Part 1 to 4 |
| Contact Smart Card Protocols | T=0, T=1 |
| Smart Card Interface Speed | Up to 600 kbps (depending on card) |
| TA1=97 | |
| Smart Card Clock Frequency | ISO/IEC 7816 compliant up to 5 MHz; Operates up to 12 MHz |
| Supported Smart Card Types | ISO/IEC 7816 voltage classes A/B/C (5V, 3.3V, 1.8V) |
| Contact Card Size | ID-000 (25 mm × 15mm) |
| Contactless Smart Card Interface | |
| Supported Standards | ISO/IEC 14443 A&B Part 1 - 4 |
| Contactless Smart Card Protocols | T=CL |
| Supported Contactless Card ICs | • MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa™, Calypso, CD21, NFC Forum Tag types 1/2/3/4 |
| Data Transfer Rate | 106/212/424/848 kbits/s, depending on card IC |
| Driver & Software | |
| PC/SC DRIVER | PC/SC Specification Ver. 2.01.14 for: |
| • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, | |
| • MacOS 10.9.x - 12.2.x, | |
| • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), | |
| • Android 8.0以上 | |
| Software | PC/SC API; CT-API (through wrapper on top of PC/SC); M-Card API (through wrapper on top of PC/SC) |
| Operating condition | |
| Power Supply | Bus-powered USB |
| Dimensions(L x W x H) | 112 x 80x21mm |
| Weight | 117 g ± 5% |
| Connector | USB Type A Connector |
| Certifications / Compliance | |
| Systems/Standards | ISO7816,ISO/IEC 14443, USB 2.0 Full Speed, CCID, Microsoft® WHQL |
| Regulatory/Environmental | RoHS |
