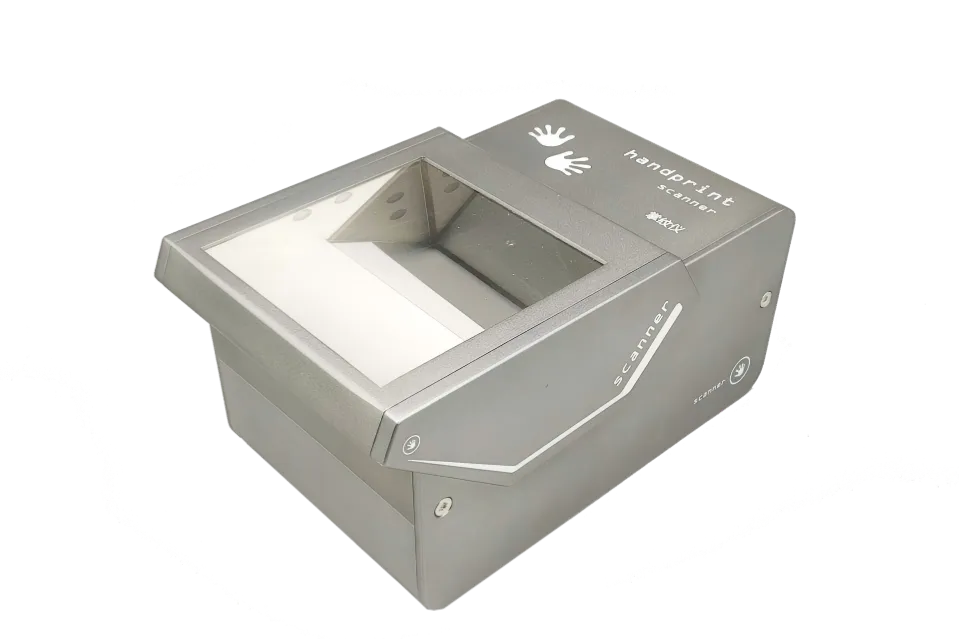

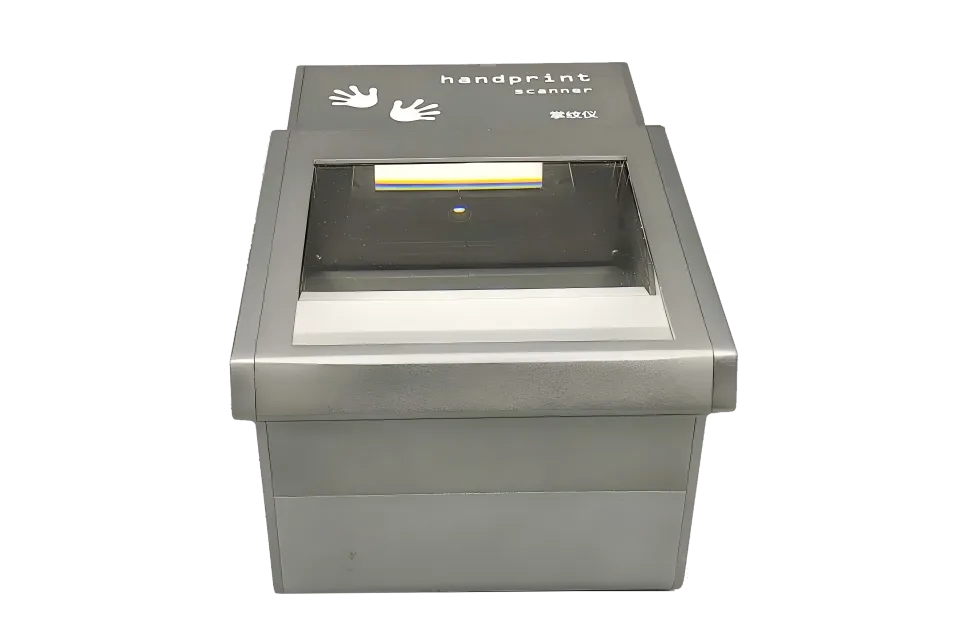

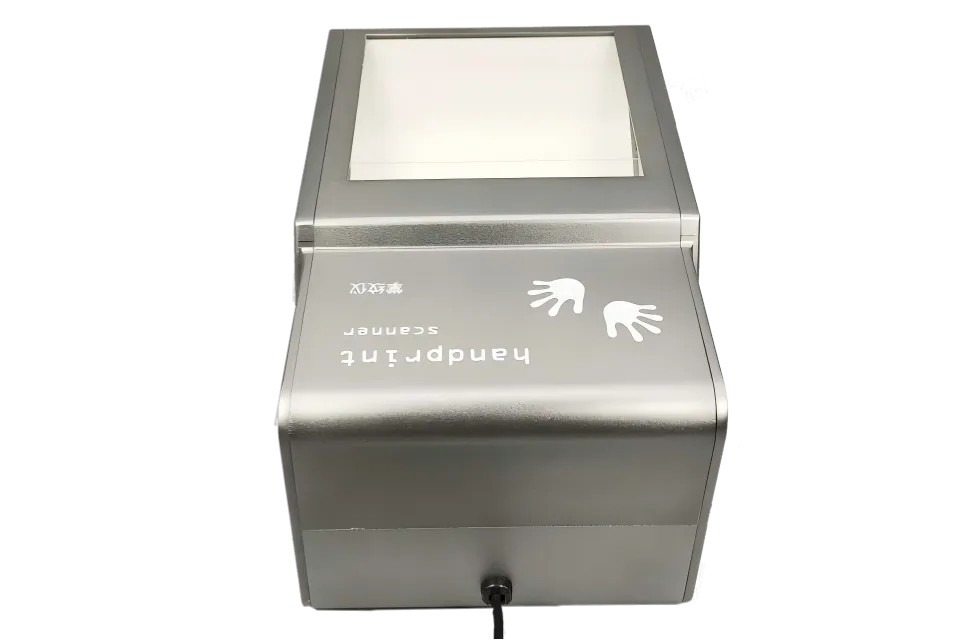

The MFS701 is an advanced optical palm and fingerprint scanner designed for high-volume enrollment and verification applications. Its large capture window integrates ten-finger flat, dual thumb, and single finger rolled capture in one device, making it ideal for national ID programs, border control, and law enforcement.
It utilizes advanced optical distortion-free imaging technology to deliver FBI FAP 60 compliant image quality at 500 DPI resolution. The large 88.0 x 86.0mm capture window produces four-finger images at 1600 x 1500 pixels with less than 1% distortion, ensuring high-fidelity biometric data for accurate matching.
The MFS701 is fully compliant with FBI FAP 60 image quality requirements, meeting the highest standards for government and civil identification applications.
To operate, simply place the hand on the capture window. The scanner supports real-time finger detection with capture speeds of ≥10 FPS for four-finger scans and ≥25 FPS for single finger scans. Built-in voice guidance and buzzer prompts guide users through correct finger placement, while automatic residual fingerprint elimination ensures clear images every time.
Security: Law enforcement, Forensic identification
Border Control: Immigration control, Identity verification
Finance: Banking security, Transaction authentication
Government: National ID systems, Civil identification
Access: High-security access control, Restricted entry
Meets highest government image quality standards
88.0 x 86.0mm for palm and four-finger capture
Ten-finger flat, dual thumb, and single finger rolled
500 DPI, 1600 x 1500 pixel four-finger image
≥10 FPS (four fingers), ≥25 FPS (single finger)
≤1% distortion for accurate matching
Built-in buzzer and voice prompts for user assistance
Contact ±8KV, Air ±15KV for rugged reliability
Plug-and-play connectivity
FBI FAP 60, ISO19794-4, NIST imaging standard
| Parameter | details |
| Supply voltage | USB is provided |
| Operating current | Typical< 700mA |
| Acquisition window size | ≥88.0mm*86.0mm |
| Effective image size | Single finger ≥32.5mm*32.5mm Four fingers ≥81.2mm*76.2mm |
| Physical Dimensions (LWH) | 171*134*104(L*W*H)mm |
| Image resolution | 500DPI |
| Pixel | Single finger ≥640*640 pixel Four fingers ≥1600*1500pixel |
