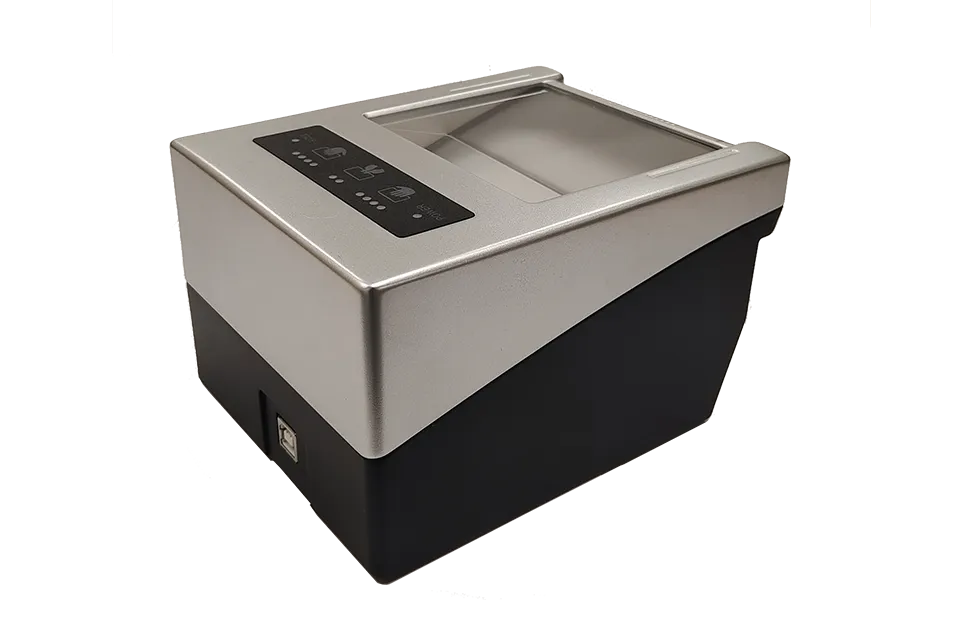

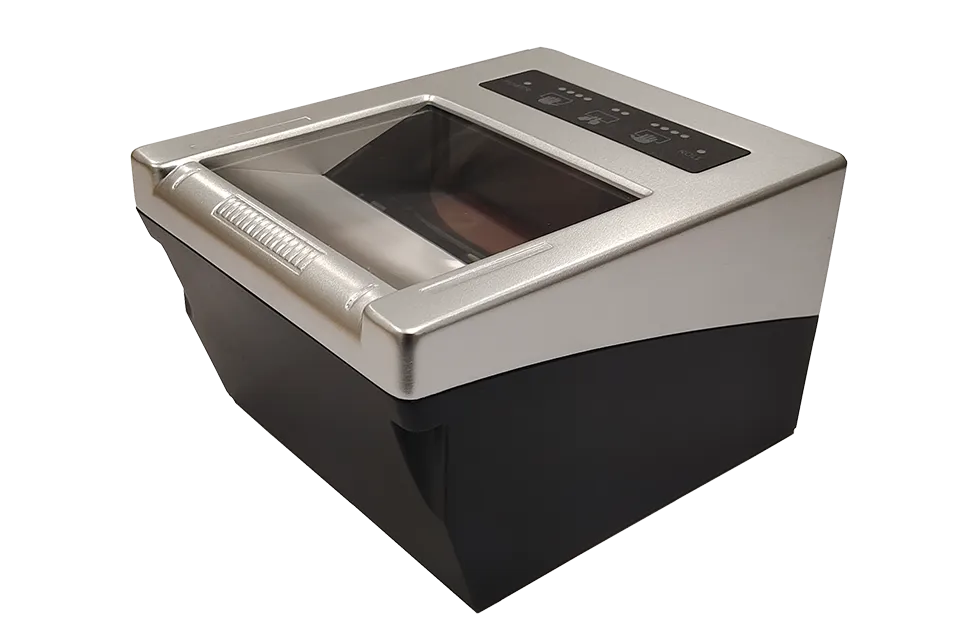

The MFS501 is a high performance optical fingerprint scanner designed for 4-4-2 capture in finance, banking, national ID, and law enforcement applications. At just 91mm height, it is one of the slimmest optical four-finger scanners available, fitting easily on any service counter.
It utilizes advanced optical imaging technology to deliver 500 DPI ±1% resolution with less than 1% distortion, ensuring high-quality prints for accurate identification.
The MFS501 is fully certified for FBI FAP 60, meeting the rigorous image quality requirements for law enforcement and government applications. Its IP54 compliant design provides dust and water resistance for reliable operation in demanding environments.

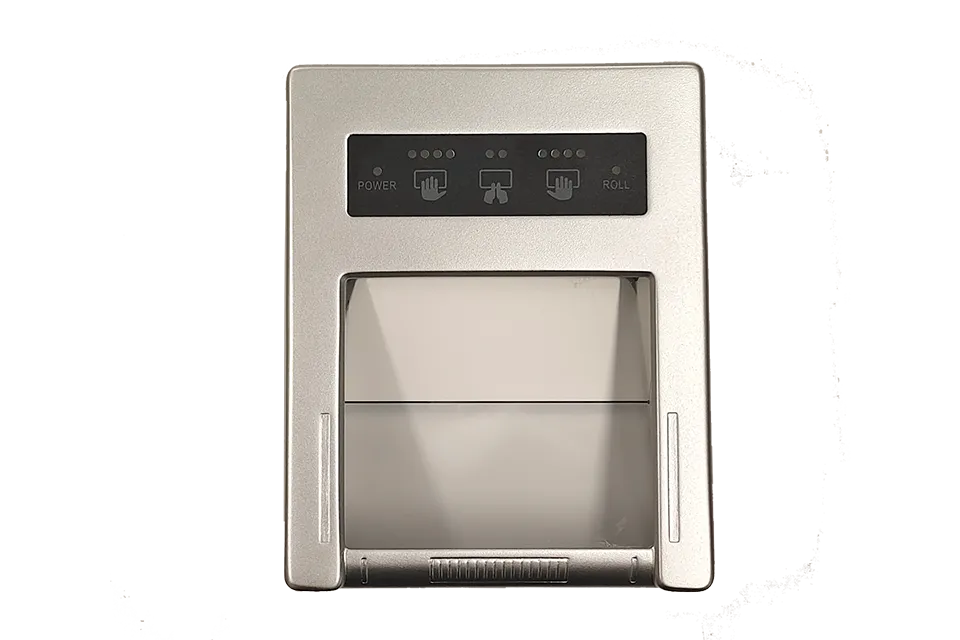

To operate, simply follow the finger indications on the scanner panel. The software guides operators through the capture process with on-screen prompts and real-time image quality feedback. Automatic fingerprint segmentation, positioning, and latent print elimination ensure high-quality captures with minimal operator intervention.
Government: National ID enrollment, Passport issuance
Border Control: Immigration control, Identity verification
Finance: Banking services, Customer authentication
Security: Law enforcement, Criminal identification
91mm height, one of the slimmest four-finger scanners
Single finger, rolled, and flat four-finger capture
500 DPI ±1%, 1600 x 1500 pixel four-finger image
≤1% distortion for accurate matching
Auto-positioning, auto-segmentation, and auto-rotation
Instant feedback on fingerprint quality
IP54 compliant, dust and water resistant
Flexible connectivity options
FBI IAFIS Appendix F, ANSI/NIST ITL-1-2007, ISO/IEC 19794-4, FCC/CE
Parameter | Details |
Host Interface | USB 2.0 or USB 3.0 |
Resolution | 500 dpi ±1% |
Active Platen Area | 3.2*3.0 in.（81.3*76.2 mm） |
Platen Size | 3.62*3.11 in. (92*79mm) |
Rolled Area | 1.6*1.5 in. (40.64*38.1 mm) |
Image Pixel Size | 1600*1500 pixel（Flat Image); 800*750 pixel（Rolled Image) |
Image Distortion | ≤1% |
Image gray Range | ≥200 grayscales Grayscale: 8-bit, 256 levels |
Collection Rate | Single finger rolling frame rate: 20 Rate/sec; Flat four fingers frame rate: 5 Rate/sec |
Capture Mechanism | Automatic |
Weight | 2.96 lbs. (1.34 kg) |
Dimensions | 5.04*6.29*3.62 in. (128*160*92 mm) |
LED Indicators | Power, status, and fingerprint indications |
Capture Format | Single fingerprint rolls, single fingerprint flats, four fingers, two thumbs |
Standard Software | • FBI standard processing software • Capture 14 NIST fingerprint images • FBI standard WSQ compression module • SMTP, FTP, XML and NIST interface module • Quality check and sequence check module • Segmentation of flats into single fingerprint images |
Available SDKs | Windows(C++、JAVA)、Android、Linux |
Minimum Computer Specifications | Intel® Core™ i3 or higher; 2 GB RAM or higher; 80 GB hard drive or higher; USB 2.0; Windows® 7 or higher |
Certifications | • Specifications (IQS) for Scanners Appendix F • ANSI/NIST ITL-1-2007 • FCC/CE |
