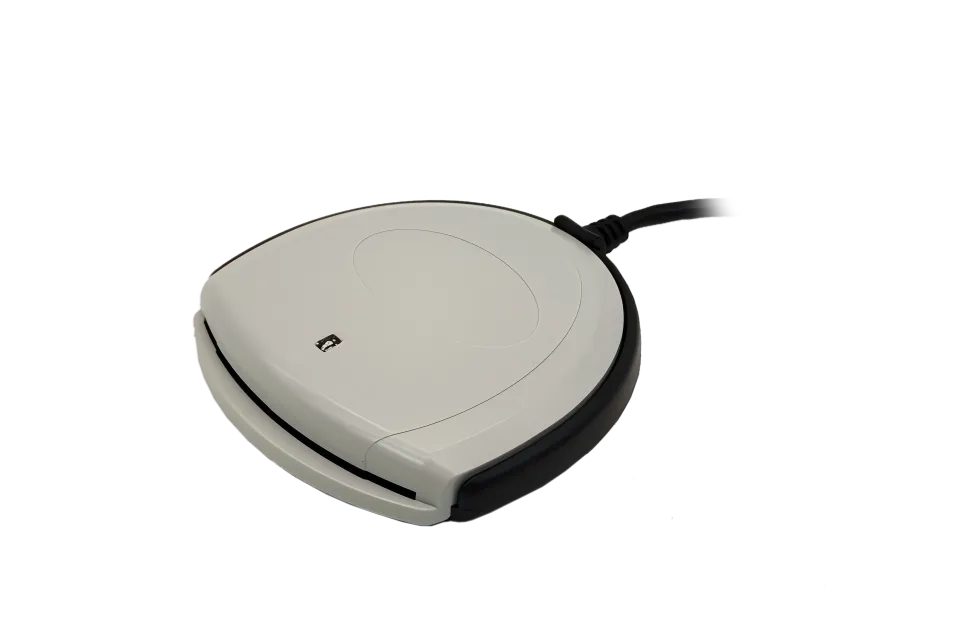

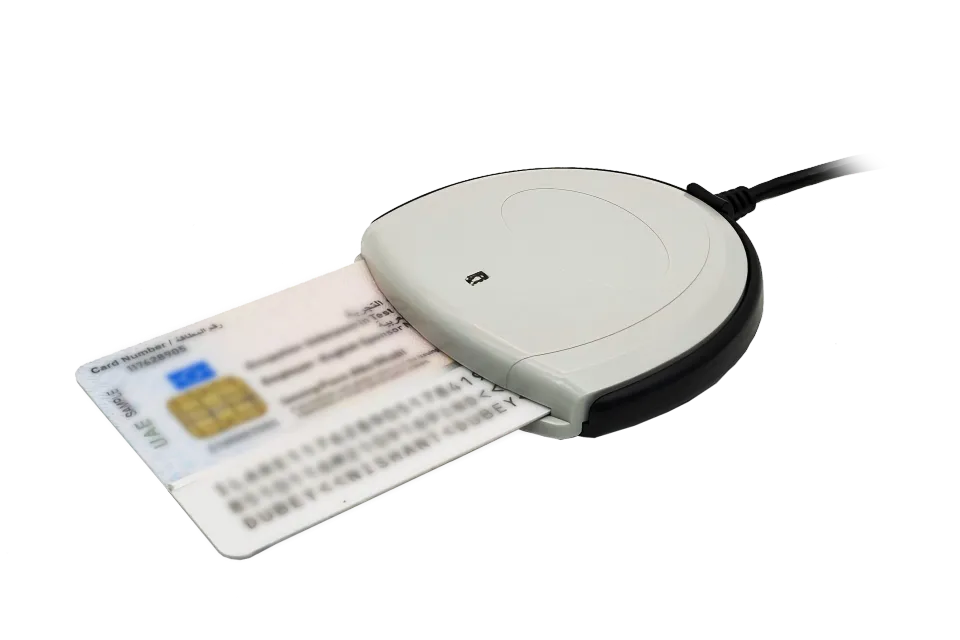

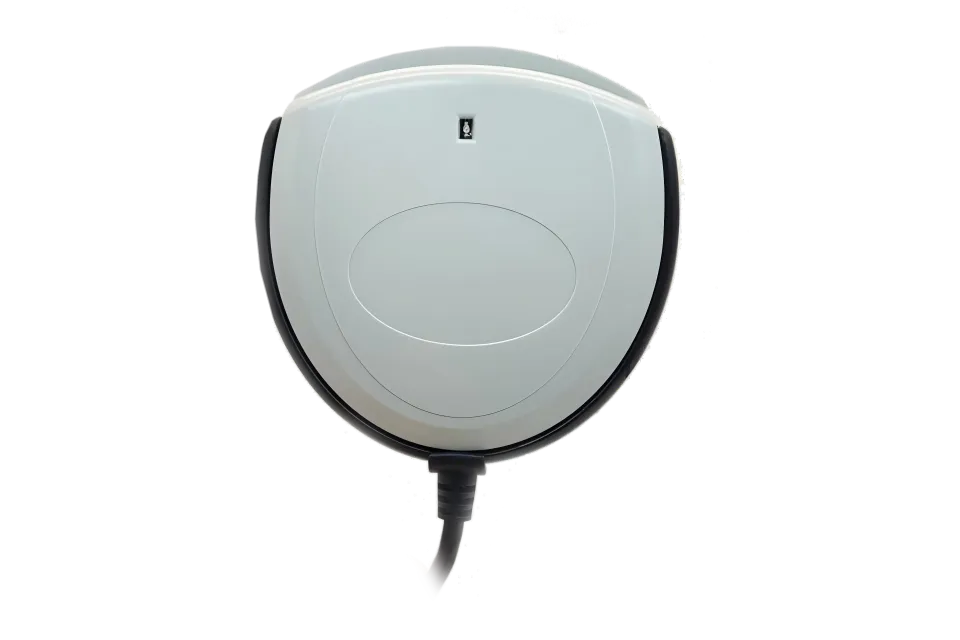

The SCR3310 v2.0 is an ultra‑compact, high‑security smart card reader designed for government, enterprise, and home applications. It includes backside mounting holes for flexible installation.
Markland is the exclusive distributor of Hirsch in Greater China, providing regional sales and support across the Greater China region.
Government: ID verification systems, Public sector applications
Healthcare: e-Healthcare systems, Patient data access
Enterprise: Network security, Secure login environments
Fully supports all major contact smart cards, including CPU and memory cards.
Advanced chip firmware enables fast interface speeds of up to 600 kbps
With the USB CCID support, you can easily integrate it into an existing system by connecting the host and smart card reader
Fully meets all major industry standards and it can be smoothly integrated into PC environments.
Works seamlessly with Windows, MacOS, Linux, Ubuntu, and Android systems.
Suitable for government, corporate, and home applications requiring secure and reliable smart card operations.
Parameter | Details |
Host Interface | USB 2.0 CCID (USB 1.1/3.0 compliant) |
Communication Speed | 12 Mbps (USB 2.0 full speed) |
Support | |
Supported Standards | ISO/IEC 7816 Part 1 to 4, EMV 2011 Ver 4.3 Level 1 (compliant) |
Smart Card Protocols | T=0, T=1, synchronous cards I2C and 3-wire |
Smart Card Interface Speed | • Up to 600 kbps (depending on card) • TA1=97 |
Smart Card Clock Frequency | ISO/IEC 7816 compliant; Operates up to 16 MHz |
Supported Smart Card Types | 5V, 3V, and 1.8V; ISO 7816 smart card Class A, B, and C |
Driver and Software | |
PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, • MacOS 10.9.x - 12.2.x, • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), • Android 8.0 and higher |
Software | • PC/SC API • CT-API (through wrapper on top of PC/SC) • M-Card API (through wrapper on top of PC/SC) |
Operating Conditions | |
Dimensions(L x W x H) | 72 x 70 x 14mm |
Weight | 60g ± 5% |
Durability | Sliding contact 100,000 card insertions |
Connector | 1.5m cable with USB Type A or Type C connector |
Certifications / Compliance | |
Systems/Standards | EMV 2011 Ver 4.3 Level 1(compliant only), ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® HCK |
Regulatory/Environmental | CE, FCC, UL 60950, IEC 62368-1, GSA APL, RoHS2, REACH, WEEE |
