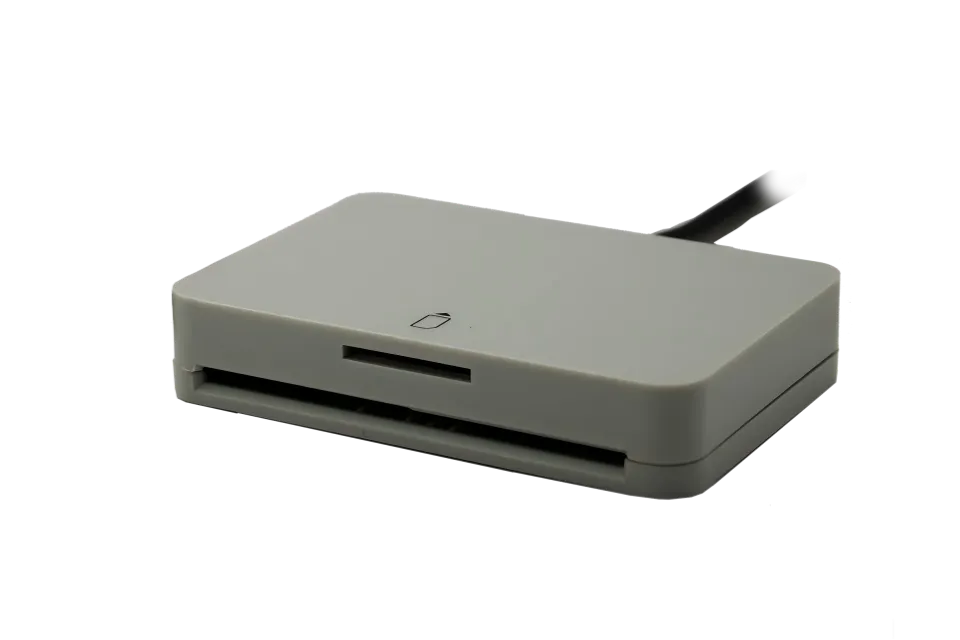

The MCR 3512 is a portable, high‑security reader supporting ID cards, SIM cards, CPU cards, and memory cards. Its lightweight design makes it ideal for both office and mobile use.
Telecommunications: SIM registration, Subscriber management systems
Identity Systems: Electronic ID verification, Citizen authentication
Access Control: Secure entry systems, Employee access points

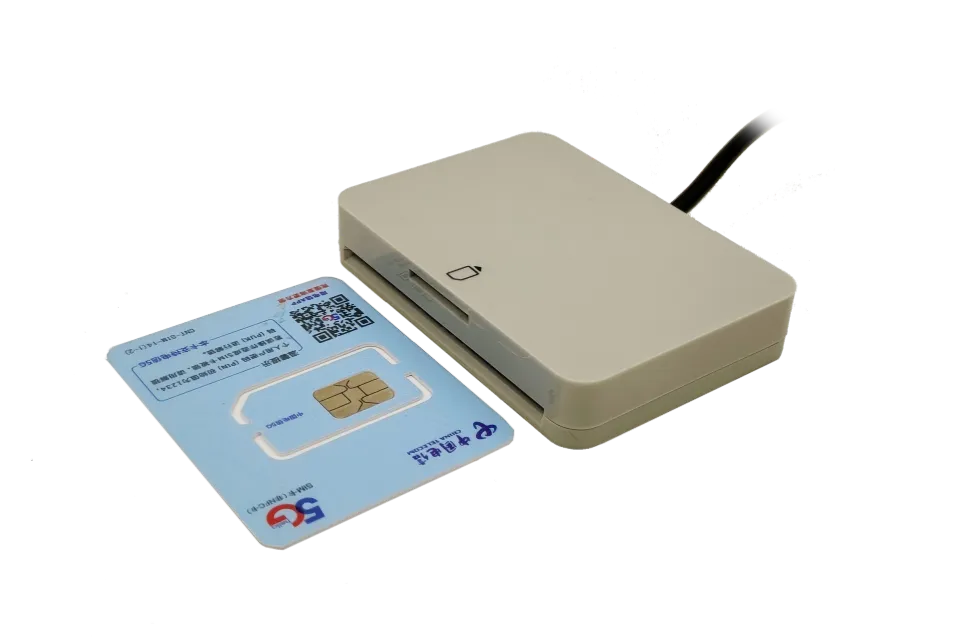

Easily supports ID cards, SIM cards, CPU and memory cards, and other contact cards for a wide range of applications.
USB CCID support allows seamless integration into existing systems.
Fully meets all major industry standards and it can be smoothly integrated into PC environments.
Its small size and lightweight design make it ideal for large-scale deployments or mobile use.
With a 600 kbps data transfer rate, it ensures fast and reliable communication with your smart cards.
Compatible with Windows, MacOS, Linux, and Android systems, ensuring flexibility across platforms.
Parameter | Details |
Host Interface | USB 2.0 CCID (USB 1.1/3.0 compliant) |
Communication Speed | 12 Mbps (USB 2.0 full speed) |
Support | |
Supported Standards | ISO/IEC 7816 Part 1 to 4, EMV 2011 Ver 4.3 Level 1 (compliant) |
Smart Card Protocols | T=0, T=1, synchronous cards I2C and 3-wire |
Smart Card Interface Speed | • Up to 600 kbps (depending on card) • TA1=97 |
Smart Card Clock Frequency | ISO/IEC 7816 compliant; Operates up to 16 MHz |
Supported Smart Card Types | 5V, 3V, and 1.8V; ISO 7816 smart card Class A, B, and C |
Card Size | ID-1 or ID-000 |
Driver and Software | |
PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP, • MacOS 10.9.x - 12.2.x, • Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit), • Android 4.0 and higher |
Software | • PC/SC API • CT-API (through wrapper on top of PC/SC) • M-Card API (through wrapper on top of PC/SC) |
Operating Conditions | |
Power Supply | USB Bus-powered |
Dimensions(L x W x H) | 68 x 48 x 13mm |
Weight | 55g ± 5% |
Durability | Sliding contact 100,000 card insertions |
Connector | USB type A connector |
Certifications / Compliance | |
Systems/Standards | ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® WHQL |
Regulatory/Environmental | CE, RoHS |
