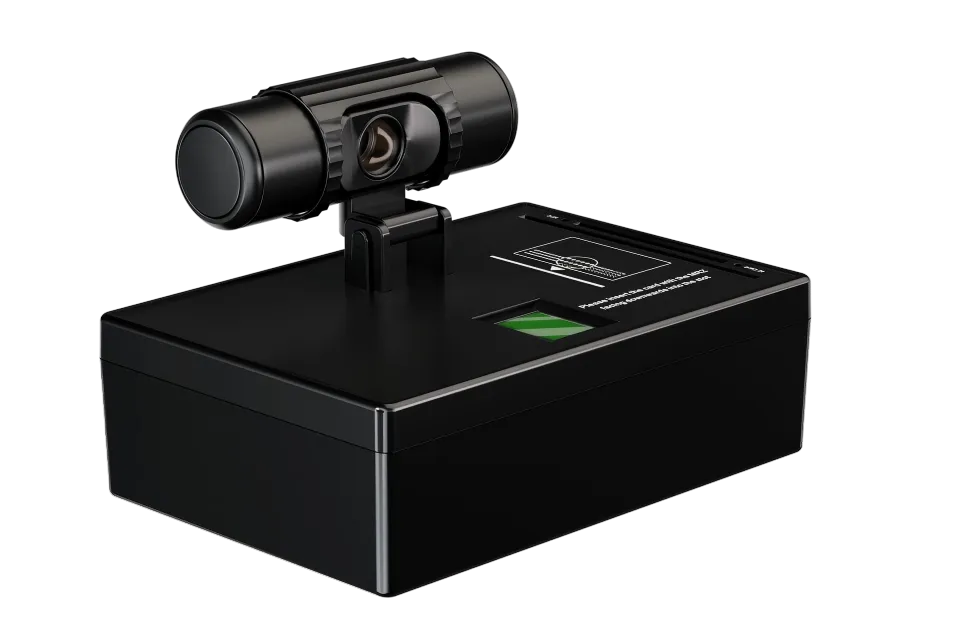

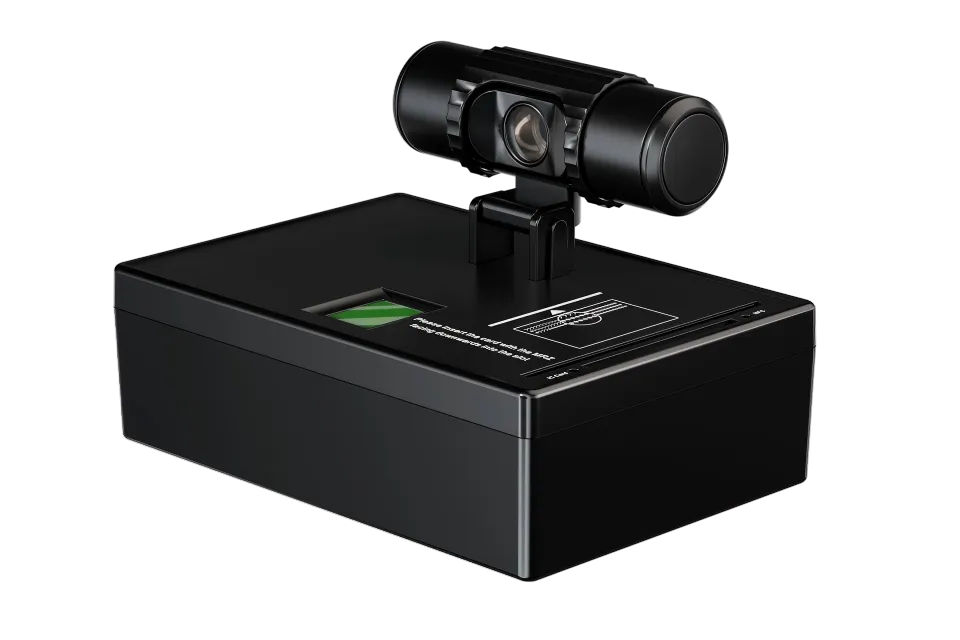

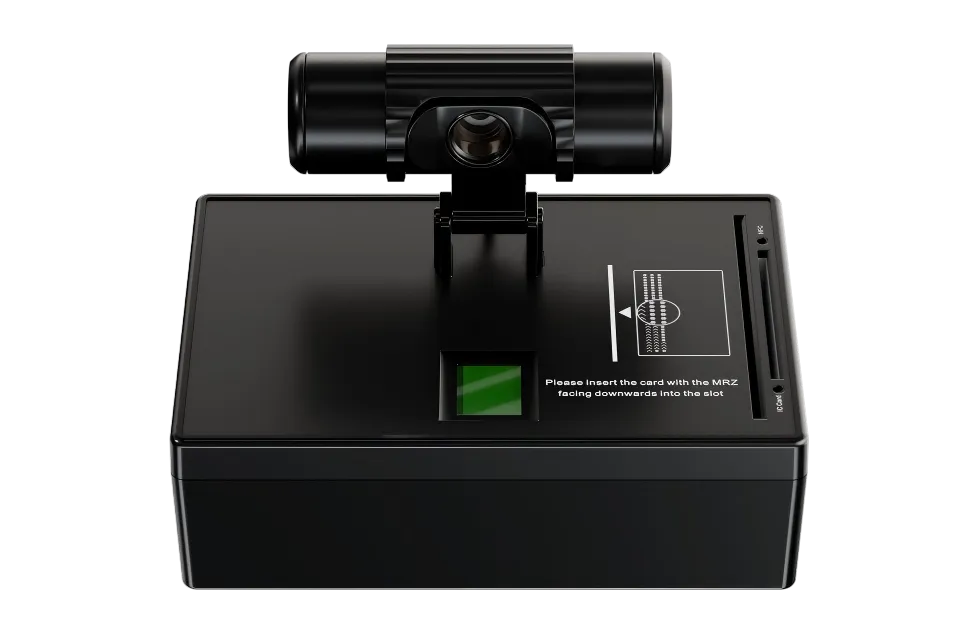

The M ID‑BOX is a multi‑functional ID card reader designed for organizations that require fast, secure, and complete identity verification for ICAO 9303 ID‑1 travel documents and national ID cards. Its integrated MRZ scanner, RFID/NFC reader, contact smart card interface, fingerprint sensor, and high‑definition camera consolidate multiple authentication steps into a single, efficient workflow.
It supports MRZ reading for ID‑1 documents, ISO/IEC 14443 Type A/B RFID chip access, ISO/IEC 7816 contact smart cards, and 500 DPI fingerprint capture. With real‑time photography and video recording, USB bus‑powered operation, and cross‑platform compatibility, the M ID‑BOX is ideal for government service counters, telecom registration, banking KYC, corporate access control, and digital onboarding environments.
Government: e-Government services, Citizen authentication
Healthcare: Patient identification, Medical systems
Finance: Banking services, Customer verification
Hospitality: Hotel check-in, Guest registration
Security: Visitor management, Access control
Supports MRZ, RFID/NFC, smart cards, fingerprint biometrics, and high‑definition imaging in a single device.
Delivers reliable MRZ and chip reading performance for ICAO 9303 ID‑1 travel documents and national e‑ID cards.
500 DPI optical sensor with 300×400 px capture for secure identity authentication.
5‑megapixel CMOS camera enabling real‑time photography and video recording.
Achieves 106–848 kbps RFID communication and up to 600 kbps contact smart card performance.
149 × 109 × 50 mm form factor optimized for counters, kiosks, and desktop verification workflows.
Compatible with Windows, Linux, Android, and MacOS via PC/SC and CCID.
Provides robust APIs and firmware upgrade support for advanced integration.
Shell, color, and packaging customization available for deployment‑specific requirements.
| Parameter | Details |
| MRZ Scanner | |
| Supported Font | OCR-B |
| Supported Standards | • ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 |
| Supported Documents | • 3 lines MRZ |
| - ID1: eID, Resident Permit... | |
| Contact Smart Card Reader | |
| Supported Contact Card ICs | All major ISO/IEC 7816 compliant smart cards and synchronous cards |
| Smart Card Protocols | T=0, T=1, synchronous cards I2C and 3-wire |
| Smart Card Interface Speed | • Up to 600 kbps (depending on card) |
| • TA1=97 | |
| Supported Smart Card Types | 5V, 3V, and 1.8V; ISO 7816 smart card Class A, B, and C |
| Contactless/RFID/NFC Reader | |
| Supported Standards | • ISO/IEC 14443 A&B Part 1 - 4,T=CL; |
| • ISO/IEC 18092 | |
| • ICAO DOC 9303 | |
| Supported Contactless Card ICs | MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family, MIFARE DESFire Family, FeliCa™, |
| NFC Forum Tag types 1/2/3/4 | |
| Fingerprint Sensor | |
| Image Resolution | 500 DPI |
| Image Size | 300 * 400 pixels |
| Effective Sensing Area | 15.24 * 20.32 mm |
| Camera | |
| Pixels | 5 Mega |
| Max. Resolution | 2592*1944 |
| Image Sensor | CMOS |
| Operating Conditions | |
| Power Supply | USB Bus-powered |
| Dimensions(L x W x H) | 149 * 109 * 50 mm (Without Camera) |
| Weight | 300 g ± 5% |
| Connector | 1.5m USB cable with USB type A connector |
| Certifications / Compliance | |
| Systems/Standards | ICAO DOC 9303, ISO 18013, ISO/IEC 7816, ISO/IEC 14443, USB 2.0 Full Speed, CCID |
| Regulatory/Environmental | CE, RoHS |
